BMS OTA Firmware Update: Dual-Bank Flash & Fail-Safe Rollback

A BMS OTA firmware update prevents system bricking by using dual-bank flash memory and automated bootloader rollback mechanics. Unlike consumer electronics, an industrial battery management system cannot fail mid-transfer without risking catastrophic hardware damage and costly field repairs. High-reliability architectures solve this by writing new firmware into an inactive secondary flash bank while the primary bank continuously monitors cell voltage, current, and temperature. If power drops, transmission interrupts, or verification fails, the OTA bootloader executes an automatic rollback to the safe operational image, keeping the battery safe, operational, and online.

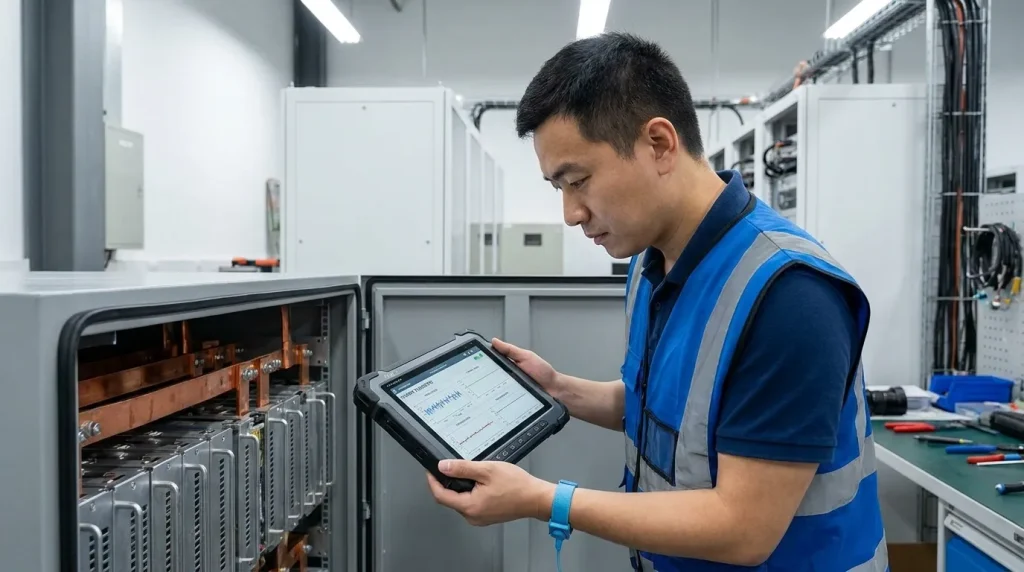

ayaatech-smart-bms-industrial-energy-storage-cabinet

1. Networking Protocols for BMS OTA Firmware Update Deployment

Modern battery management systems use distinct network layers for field maintenance. Short-range wireless like Bluetooth handles light mobility and residential storage. Telematics gateways use cellular networks for fleet EVs and commercial grid-tied systems. Multi-pack racks broadcast binary packages across an internal CAN or RS485 bus.

bms-ota-firmware-update-network-architecture-diagram

Consumer apps force single-bank flashing. Range loss or incoming calls break the transfer. This corrupts the MCU vector table.

Industrial firmware over-the-air (FOTA) updates run independently in background memory as core Smart BMS features. They maintain safety monitoring throughout the flashing cycle.

For example, AYAA TECH SmartBMS units pair natively with all major open-source flight controllers. This eliminates tedious signal debugging during unmanned aerial vehicle (UAV) wireless upgrades.

2. Dual-Bank Flash Architecture: Eliminating Firmware Downtime

Single-bank microcontrollers stop execution during memory erasure. Dual-bank flash memory divides internal storage into Bank 1 and Bank 2. The MCU writes code to Bank 2 while running active subroutines from Bank 1.

Active monitoring remains alive at all times. Continuous protection prevents thermal runaway hazards during grid-tied peak shaving operations. Uninterrupted cell balancing preserves overall pack cycle life and usable energy density.

【Engineering Note】 Single-bank memory erasure risks mid-write brownouts. Interrupting single-bank flash writes causes unrecoverable hard faults. Dual-bank architectures keep active vector tables untouched until binary verification passes completely.

The memory transition follows a strict staging pipeline:

Step 1
Normal State
The bootloader maps execution vectors to Bank 1. The BMS operates normally.
Step 2
Transfer State
Incoming firmware blocks write sequentially into Bank 2 sectors.
Step 3
Staging State
Flashing completes. Bank 2 holds an unverified binary image.
Step 4
Swap State
The bootloader verifies checksums and flips internal boot bits.

Upgrading Your Battery Management Architecture?

Explore Product Catalog

3. Fail-Safe Rollback Mechanics in a BMS OTA Firmware Update

An OTA bootloader resides in read-only memory. It acts as an immutable security gatekeeper. The bootloader enforces CRC32 checks and cryptographic signatures (ECDSA or RSA). This blocks corrupted or malicious code.

ayaatech-bms-ota-fail-safe-rollback-logic-flowchart

If post-boot self-testing fails, a hardware watchdog timer trips. The bootloader invalidates the corrupt image and restores the original code.

Accurate state monitoring is vital during post-update reboots. AYAA TECH holds state-of-charge (SOC) algorithm error strictly within ≤ 3%. Standard market alternatives average 5% error. This precision prevents false cutoffs after system resets.

【Engineering Note】 CAN bus register mismatches cause communication lockouts post-update. Without automated heartbeat rollbacks, the battery becomes invisible to the top-level Energy Management System (EMS).

4. Multi-Pack Cascading and Thermal Management During OTA

High-voltage battery racks use master-slave gateway topologies. A central gateway receives the cloud binary. It broadcasts frame chunks down the internal CAN bus. Slave nodes write to secondary memory simultaneously.

Heavy flashing increases MCU current draw and localized PCB heat. Uncontrolled heat damages sensitive electronic components.

AYAA TECH optimizes thermal performance across every SmartBMS and Battery Pack. We space MOSFETs and sampling resistors uniformly across the board layout. We apply premium thermal silicone pads and gels. Where needed, high-conductivity aluminum or copper heat sinks accelerate heat dissipation.

Procurement managers face serious total cost of ownership risks. Failing updates on 1% of field units forces expensive truck rolls. Manual JTAG re-flashing rapidly destroys project profitability.

5. Procurement Checklist for Industrial BMS OTA Capabilities

Procurement managers must evaluate hardware specifications to protect long-term project margins. Choosing low-cost consumer implementations increases total cost of ownership through frequent truck rolls.

The following matrix compares consumer-grade hardware against industrial standards for critical energy storage deployments.

Architectural Feature Industrial Standard (e.g., AYAA TECH) Consumer / Low-Cost Standard Operational Impact
Flash Memory Hardware Dual-Bank Flash Single-Bank Flash Background flashing without stopping protection.
Recovery Logic Automatic Watchdog Rollback Manual SWD Override Eliminates bricked units from interrupted writes.
Security ECDSA Signature + CRC32 Simple Additive Checksum Prevents unauthorized code execution.
Power Loss Handling Resilient at any flash percentage Corrupts vector table Guarantees recovery during mid-update outages.
App Security Encrypted TLS + Dynamic Token Hardcoded Default Passwords Blocks unauthorized Bluetooth access.
Multi-Node OTA CAN/RS485 Master Broadcast Manual Per-Pack Pairing Accelerates updates across large battery banks.

Evaluating these technical parameters guarantees operational uptime across utility-scale and commercial projects.

Designing a Custom High-Voltage or ESS Battery Pack?

Consult a Battery Architect

Frequently Asked Questions

What happens if a BMS loses power during an OTA update?

Dual-bank flash memory prevents damage during power outages. The MCU writes data into an inactive flash bank. If power drops, the bootloader discards the partial file. The BMS reboots safely using its original firmware.

What is the difference between single-bank and dual-bank flash?

Single-bank flash contains one unified memory block. Updating it requires erasing active operating code. Dual-bank flash splits memory into Bank 1 and Bank 2. The MCU runs safety subroutines from Bank 1 while flashing Bank 2.

How does a BMS bootloader verify firmware integrity?

The bootloader runs a multi-stage check. First, it calculates a CRC32 checksum to verify complete data transfer. Second, it checks cryptographic signatures against stored keys. This step confirms firmware authenticity before execution.

Why should EMS and BMS firmware be updated sequentially?

Updating the top-level EMS first ensures protocol compatibility. The EMS must recognize new command flags and message structures. Updating EMS code first prevents false communication alarms during BMS flashing.

How do master-slave setups update multiple battery packs?

A central Master BMS receives the firmware file from the cloud. It splits the binary into data frames. The Master broadcasts these frames over the internal CAN bus to all Slave nodes simultaneously.

How does secure boot protect smart BMS hardware?

Secure boot verifies hardware keys during every startup cycle. It checks the application signature in flash memory before booting. If it detects modified code, it halts execution or triggers an automatic rollback.
