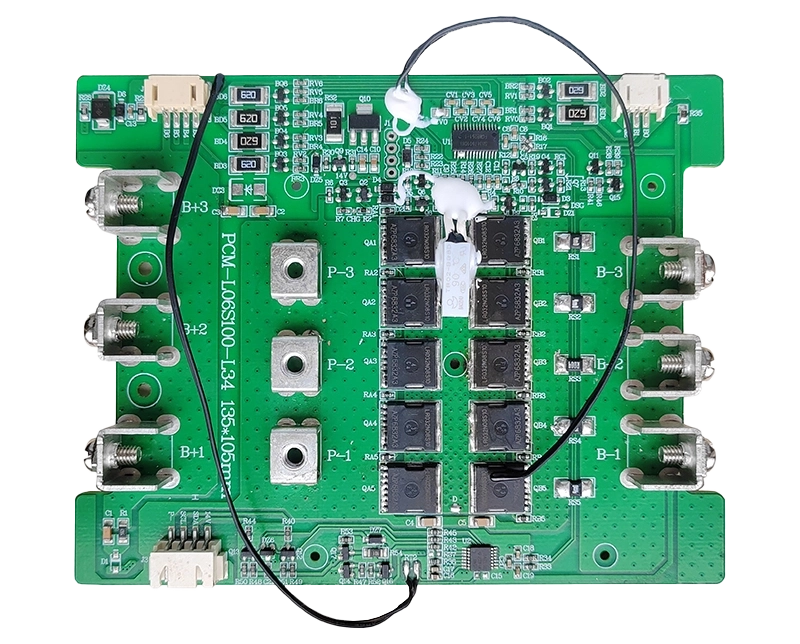

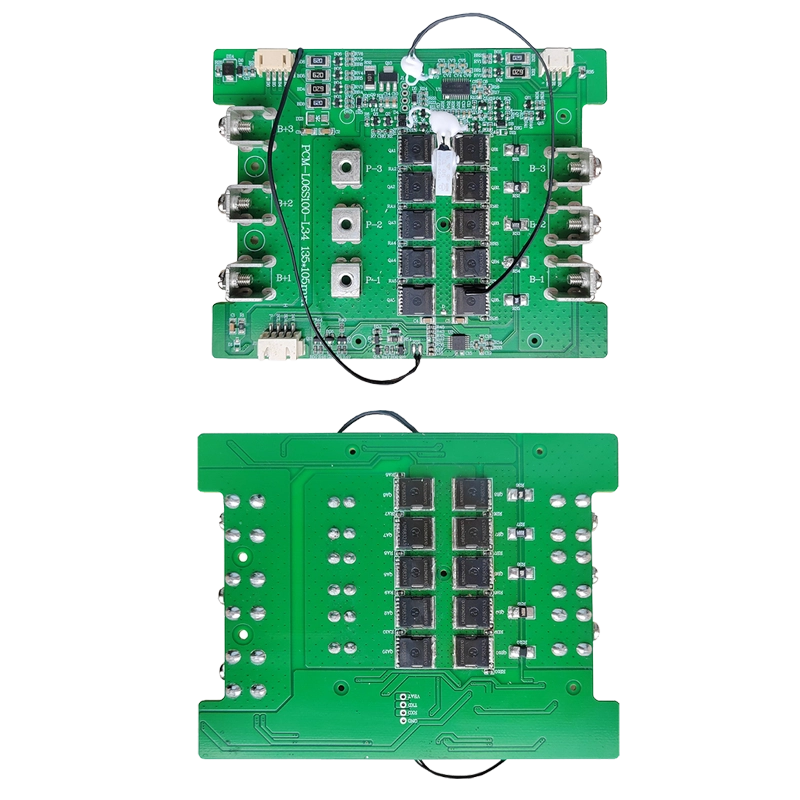

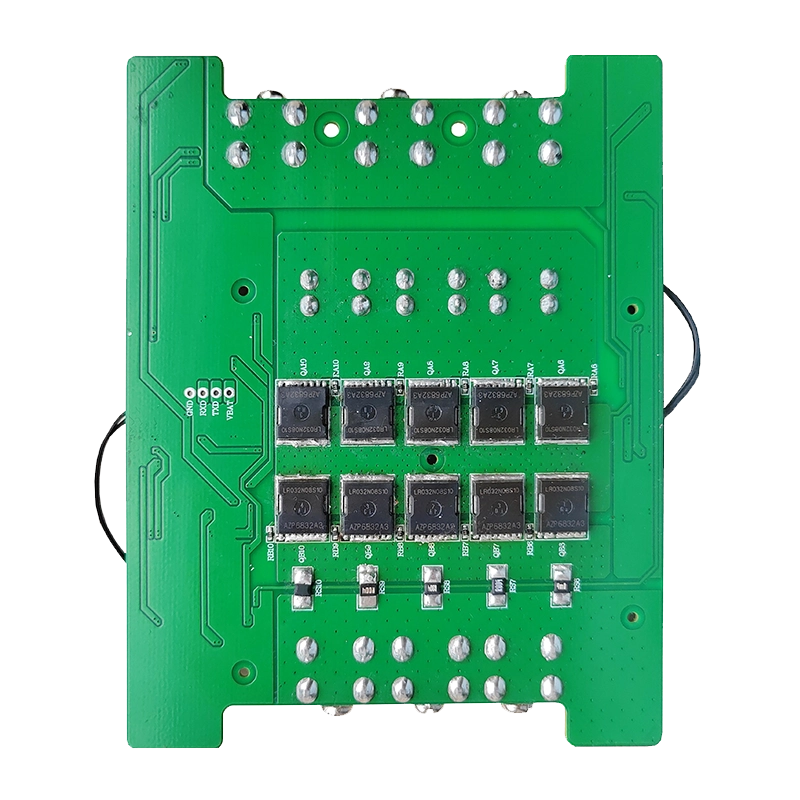

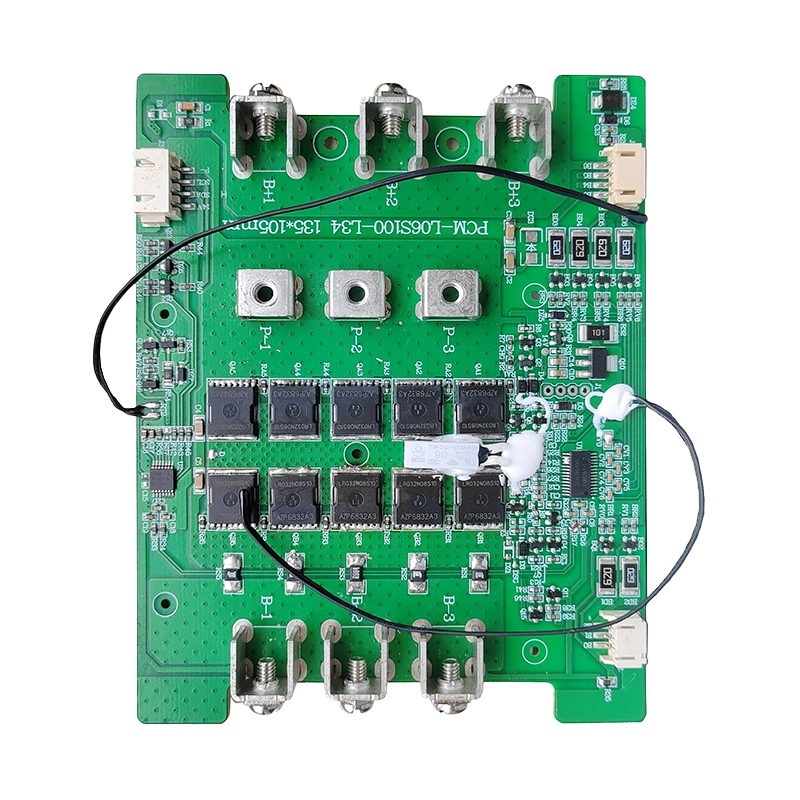

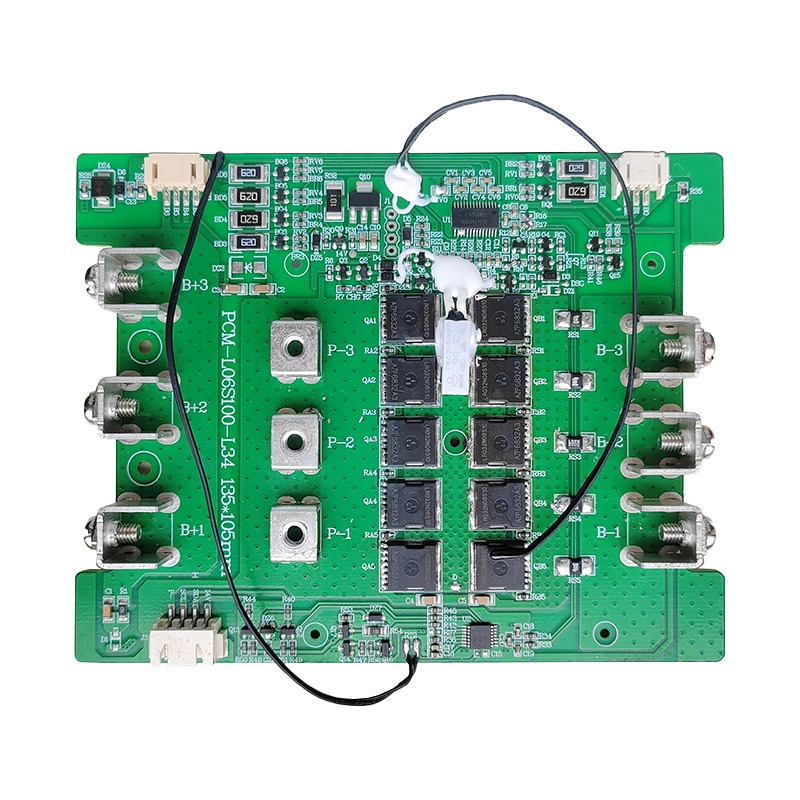

I2C| Model Number | PCM-L06S100-L34 | |||
| Communication Interface | I2C |
|||
| Charging voltage | DC：20.7V~25.2V CC/CV （3.45V~4.2V/Cell）6s |
|||
| Maximal continuous charging current | 30-100A | |||
| Maximal continuous discharging current | 30-100A | |||
| Normal operating-mode current | 600 uA | |||
| SLEEP operating-mode current | 350 uA | |||
| Balance current for single cell | / | |||
| Balance voltage for single cell | / | |||
| Over charge detection voltage | 3.6-4.35V | |||
| Over discharge detection voltage | 2.0-3.0V | |||
| Over charge current protection | / | |||
| Over current detection current | 90-300A | |||
| Short Protection | YES | |||
 |
|
| size | L145*W105*T8mm |
| NTC | 10K |
| Temperature switch | / ℃(the batteries temperature) |
| Weak currentswitch | / |
| Active balance | / |
| Heater | / |
| Braking Resistors | / |
| Low temperature protOperating Temperature Range | -40～+85℃ |
| Storage Temperature Range | -40~+125℃ |
| LCD display screen | / |
| LED light board | / |
| Bluetooth mode | / |
| 4G | / |
| GPS | / |
