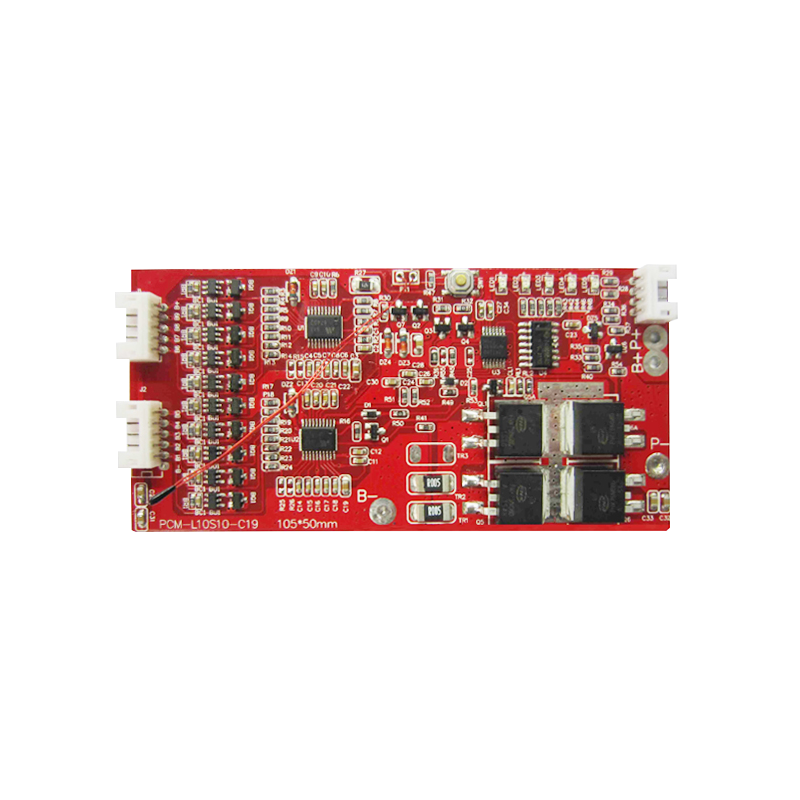

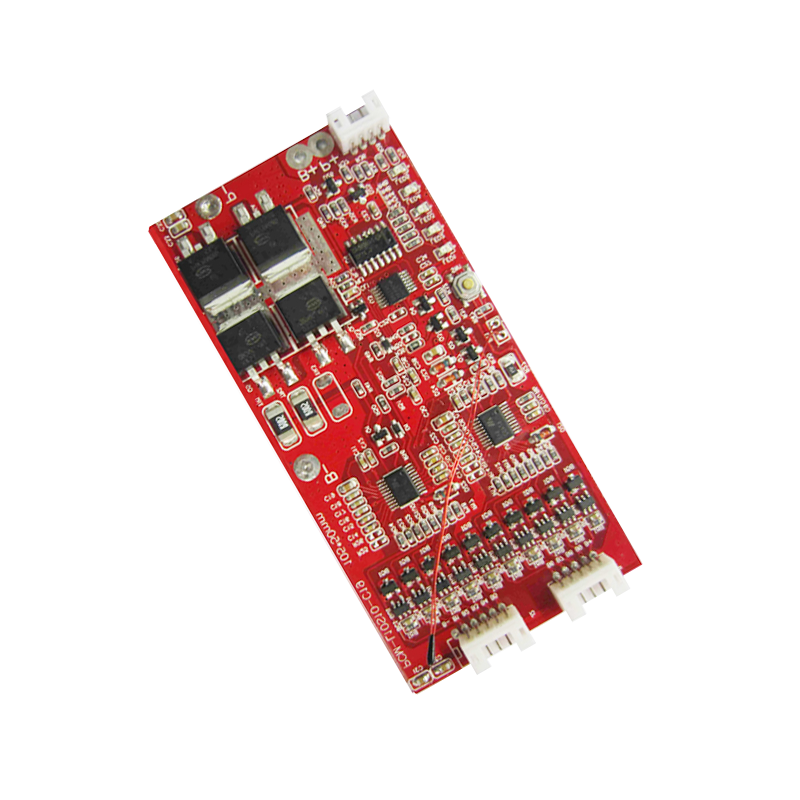

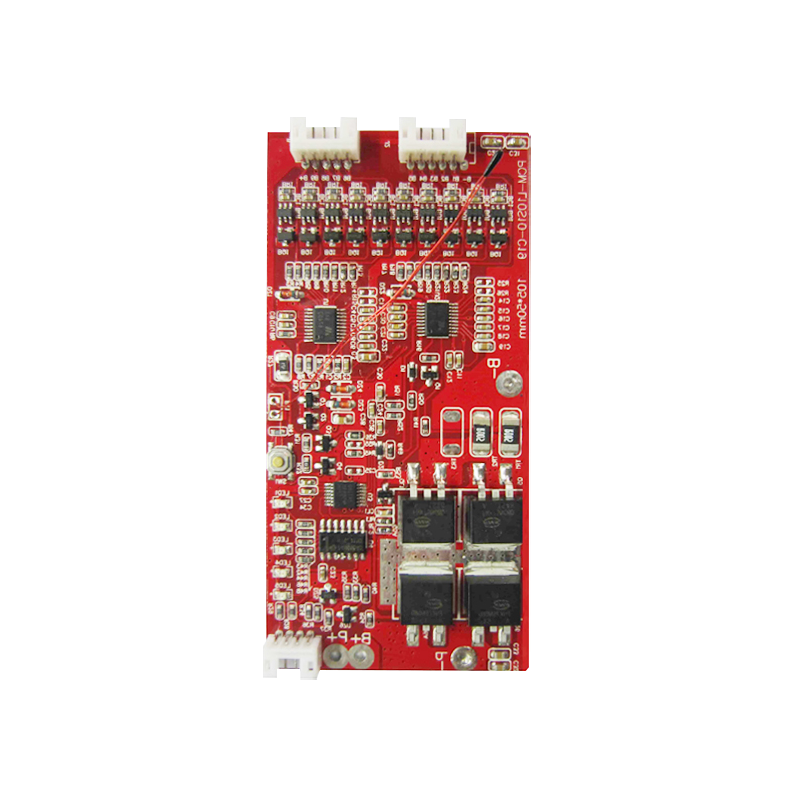

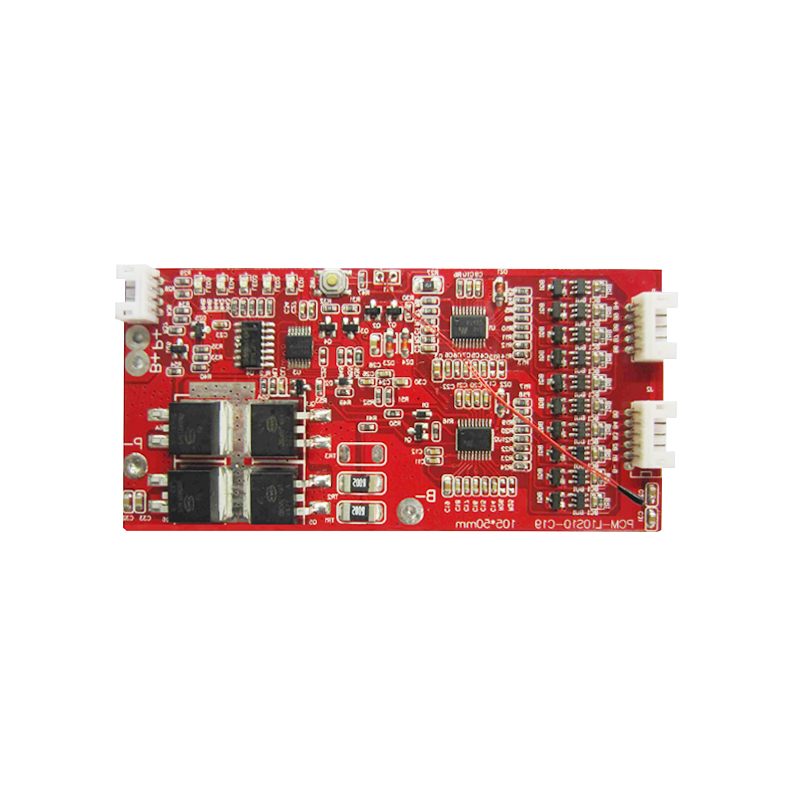

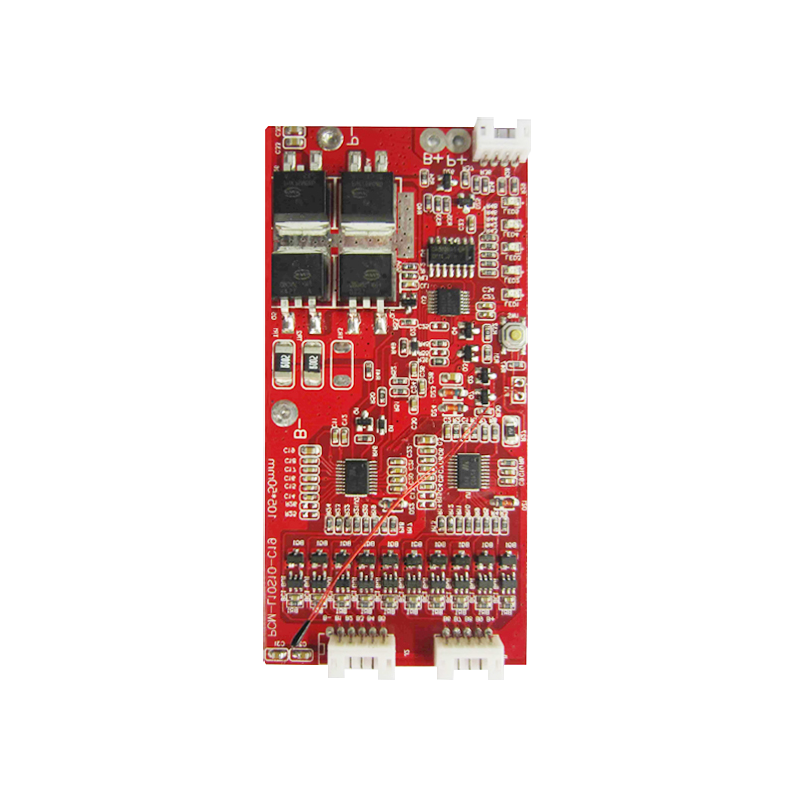

PCM-L10S10-C19 (10S 10A) BMS/PCM with Communications - AYAA TECHNOLOGY CO., LTD

BMS/PCM with Communications Protection Circuit Module Specifications For 37V Li-ion/Li-Po Battery Pack Model: PCM-L10S10-C19 (LI-10S) No. Test item（Test at normal temperature 25±2℃ and relative humidity≤90%） Criterion 1 Communication Interface HDQ or I2C 2 Capacity Designing battery capacity 8500mAh Designing battery capacity 8500mAh Max capacity（Battery pack） 320000mAh Min capacity（Battery pack） 800mAh External capacity Indication Gas gauge algorithm Impedance Track 3 Voltage Charging voltage DC: 37V CC/CV（4.2V/1cell） Balance voltage for single cell 4.2±0.05V 4 Current Balance current for single cell 68±10mA Normal operating-mode current：Gas Gauge in NORMAL mode, ILOAD > Sleep Current 160 uA SLEEP operating-mode current：Gas Gauge in SLEEP mode, ILOAD < Sleep Current 80 uA FULL SLEEP operating-mode current：Gas Gauge in FULL SLEEP mode, ILOAD < Sleep Current 25 uA Maximal continuous charging current 10A Maximal continuous discharging current 10A 5 Over charge Protection Over charge detection voltage 4.25±0.05V Over charge detection delay time 0.5S—2S Over charge release voltage 4.05±0.1V 6 Over discharge protection Over discharge detection voltage 2.75±0.1V Over discharge detection delay time 10—30mS Over discharge release voltage 3.0±0.1V 7 Over current protection Over current detection current 40±5A Detection delay time 5ms—60ms Release condition Cut load 8 Short protection Detection condition Exterior short circuit Detection delay time 200-800us Release ... - AYAA TECHNOLOGY CO., LTD
