3S-5S 200A BMS for Energy Storage

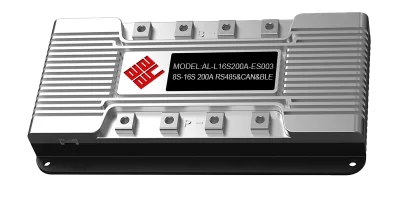

LF LI Model Number AY-L16S200A-ES003 (8S-16S) Communication Interface RS485/CAN/UART Charging voltage DC：25.6V~51.2VCC/CV（3.2V/Cell)8s~16s DC：33.6V~67.2VCC/CV（4.2V/Cell)8s~16s Maximal continuous charging current 200A Maximal continuous discharging current 200A Current consume in normal operation ≤15mA Current consume in sleep operation ≤150uA Balance voltage for single cell 3.5±0.05V 4.0±0.05V Over charge detection voltage 3.65±0.05V 4.25±0.05V Charge Over current detection current 220±3A Discharge Over current detection current 1 400±3A Discharge Over current detection current 2 500±3A Short Protection YES SOC 5%~8% Technical Specification Size L206 * W162 * T30 mm NTC 10K Temperature switch / ℃(the batteries temperature) Weak current switch YES Active balance YES Heater YES Braking Resistors NO Other Parameter Low temperature protection when charge 0℃ Release temperature( low temperature protection) 5℃ Over temperature protection when charge 60℃ Release temperature( over temperature protection) 55℃ Low temperature protection when discharge -15℃ Release temperature( low temperature protection) -10℃ Over temperature protection when discharge 65℃ Release temperature( over temperature protection) 55℃ Operating Temperature Range -40~+85℃ Storage Temperature Range -40~+125℃ Temperature Parameter LCD display screen YES LED light board YES Bluetooth mode YES 4G YES GPS YES Optional Configuration
