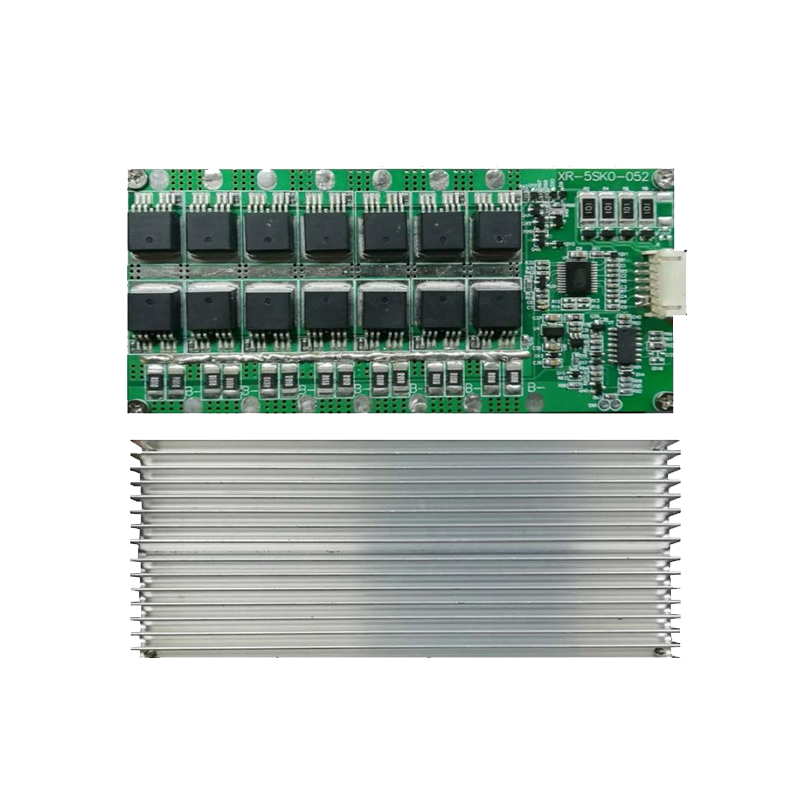

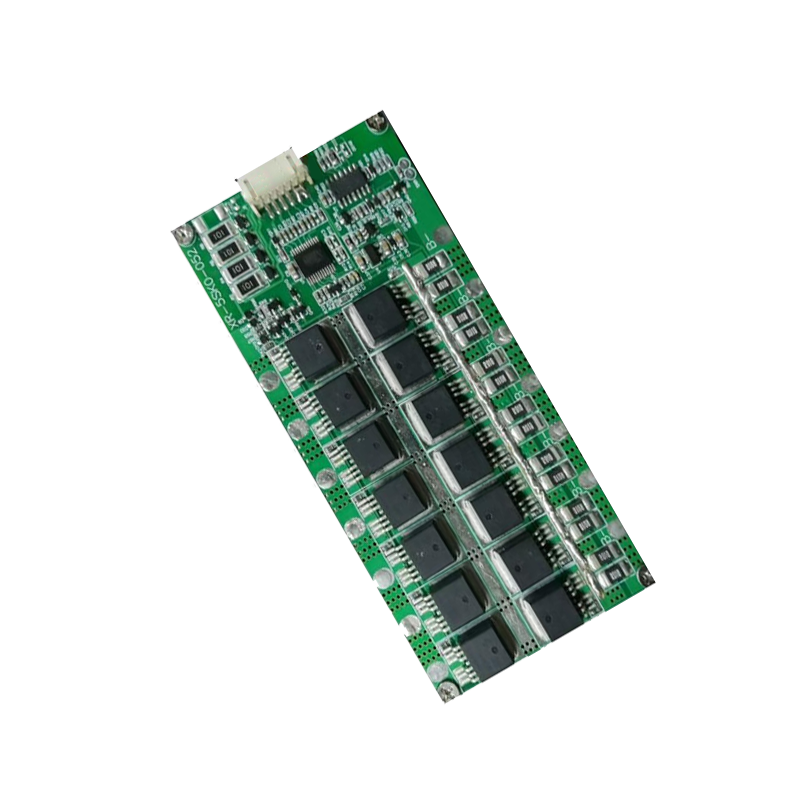

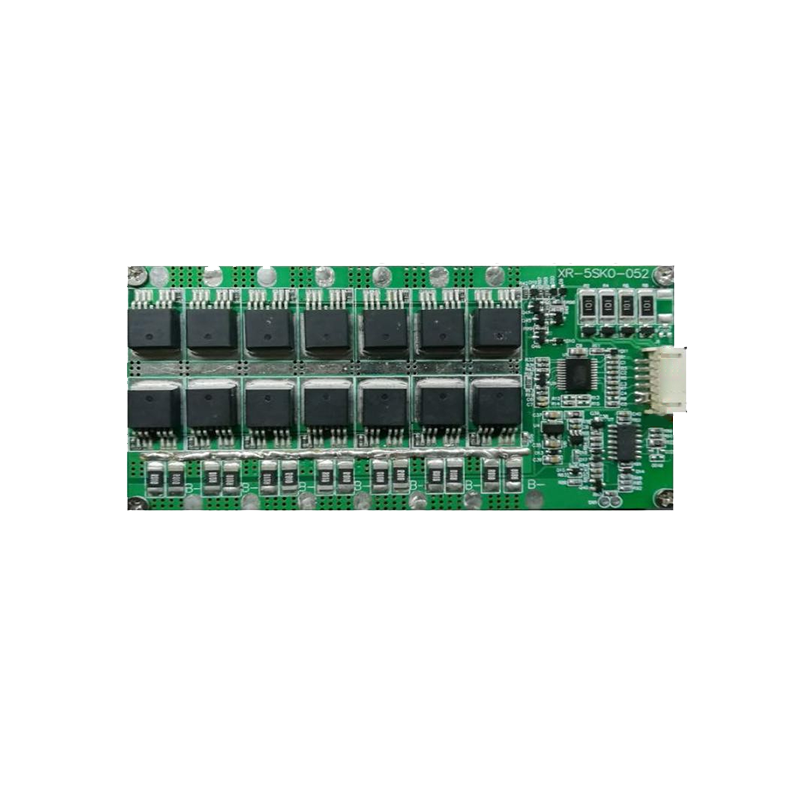

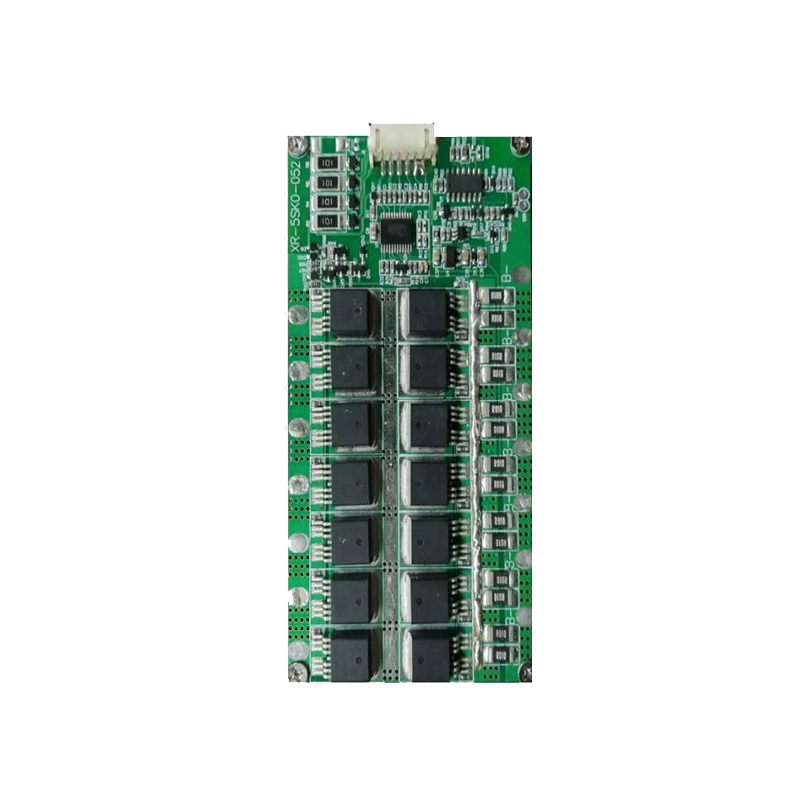

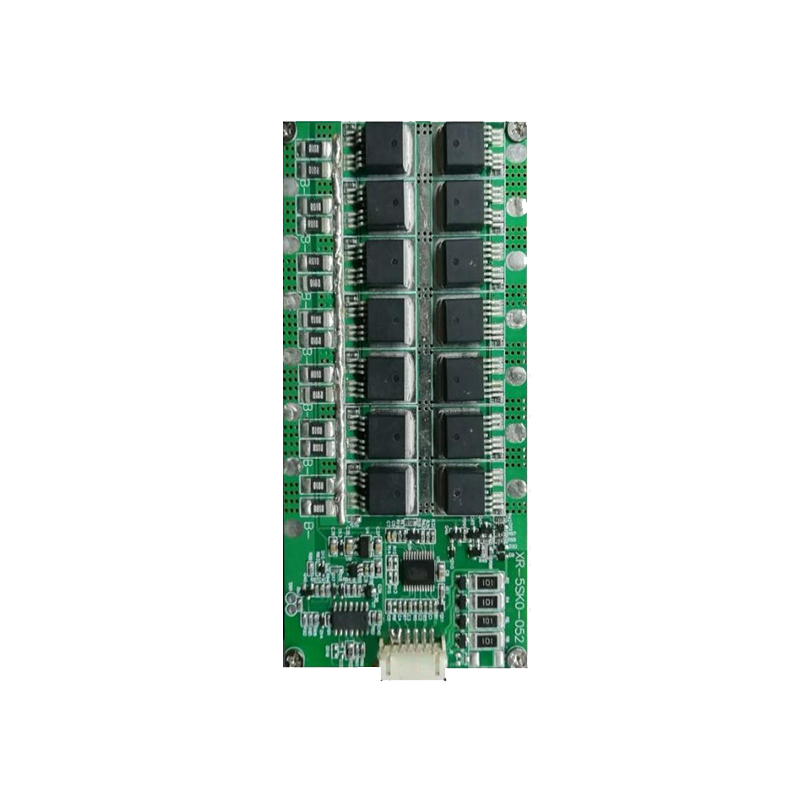

PCM-L05S100A-AY073 BMS for lithium batteries - AYAA TECHNOLOGY CO., LTD

PCM-L05S100A-AY073 Model: PCM-L05S100A-AY073 (LI-5S80A) Ver: A Test item（Test at normal temperature 25±2℃ ） Criterion Voltage Charging voltage DC: 21V CC/CV（4.2v/Cell）5S Supply Current Normal current consumption ≤50uA Maximal continuous charging current 80A Maximal continuous discharging current 80A Balance Balance current for single cell 42±10mA Balance voltage for single cell 4.2±0.05V Over-charge Protection（single cell） Over charge detection voltage 4.25±0.05V Over charge detection delay time 0.5S—2S Over charge release voltage 4.10±0.1V Over-discharge Protection（single cell） Over discharge detection voltage 2.8±0.05V Over discharge detection delay time 10—200mS Over discharge release voltage 3.0±0.1V Current protection（Battery pack） Discharge over current detection current 300±50A Detection delay time 5mS—50mS Release condition Cut load,AutoRecovery Short protection Detection condition Exterior short circuit Detection delay time 200-600uS Release condition Cut load Resistance Main loop electrify resistance ≤30mΩ Temperature High temperature discharge protection 65±3℃ Operating Temperature Range -40～+85℃ Storage Temperature Range -40～+125℃ SIZE: L120 * W60 * T18 mm NTC: / Temperature switch: 65 ℃ (the batteries temperature) Weak current switch: / Activation Method: / - AYAA TECHNOLOGY CO., LTD
