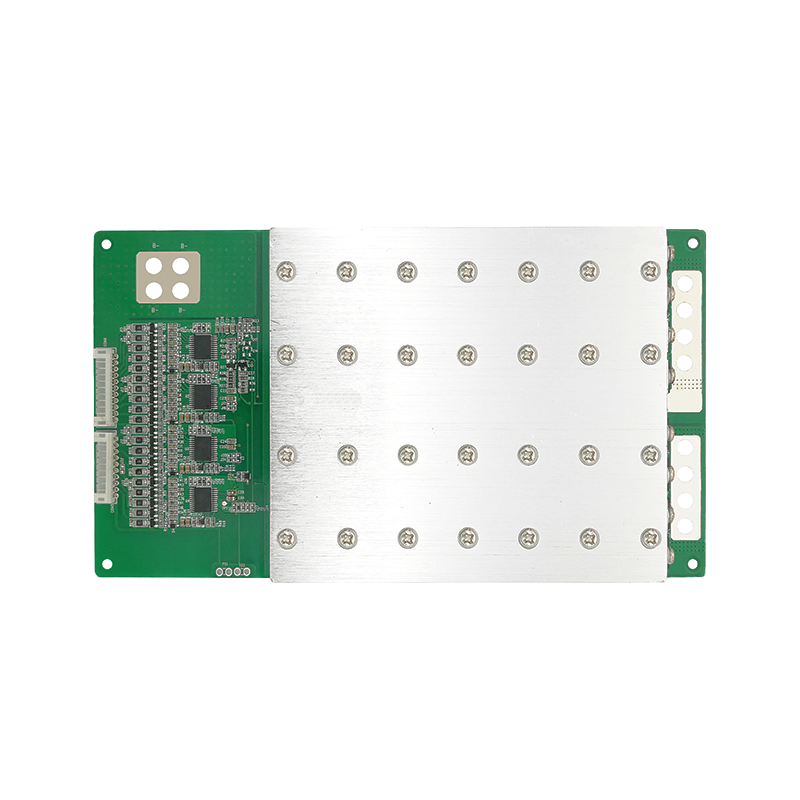

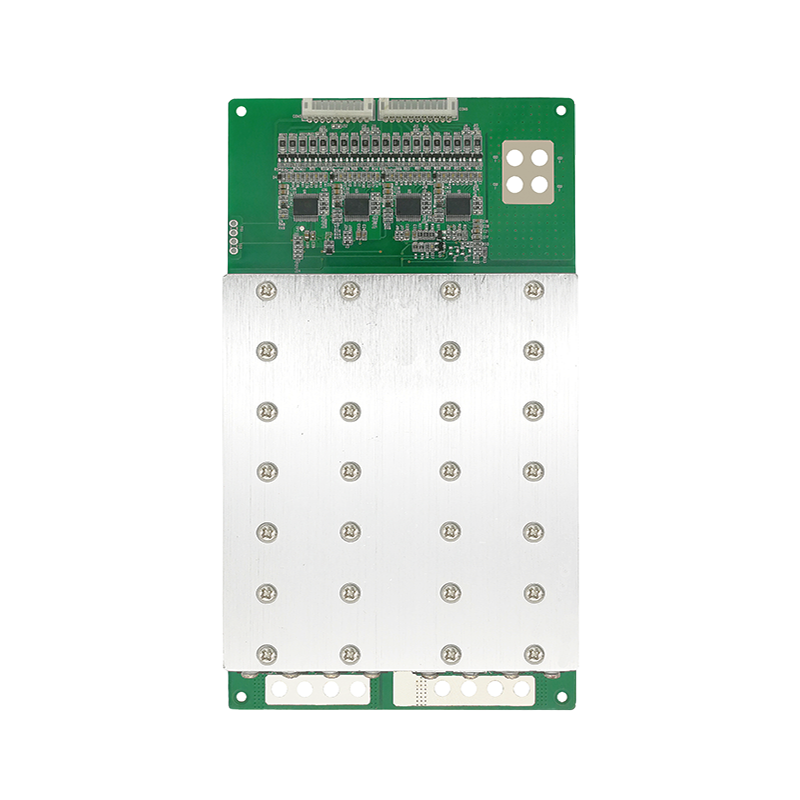

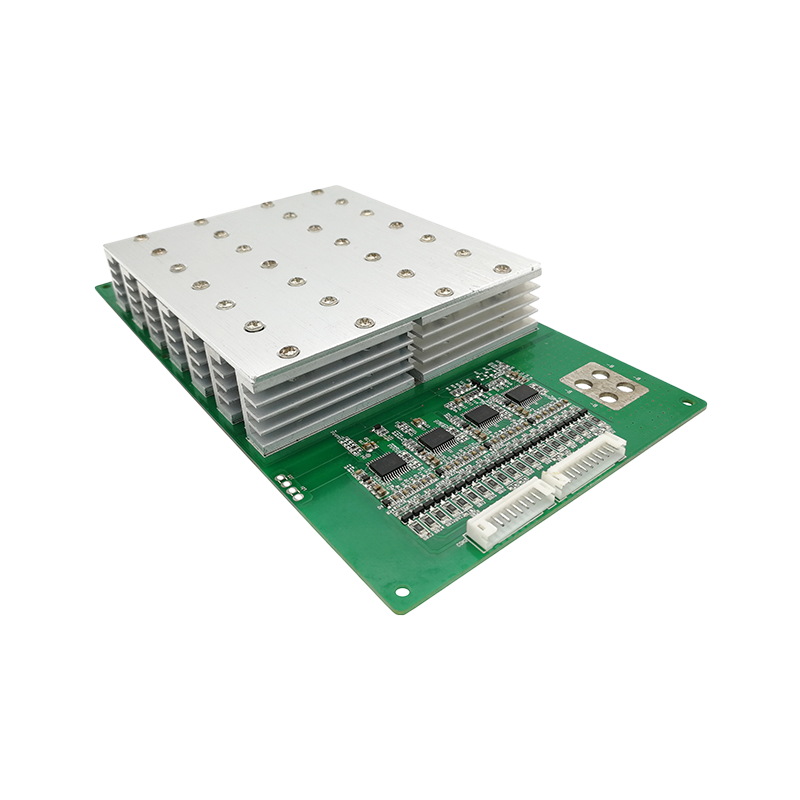

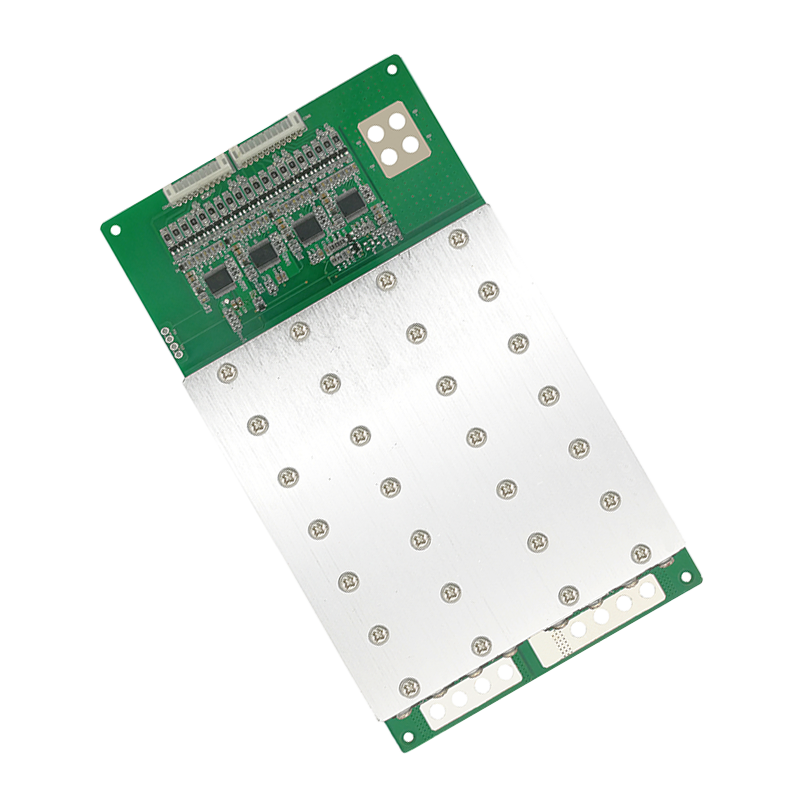

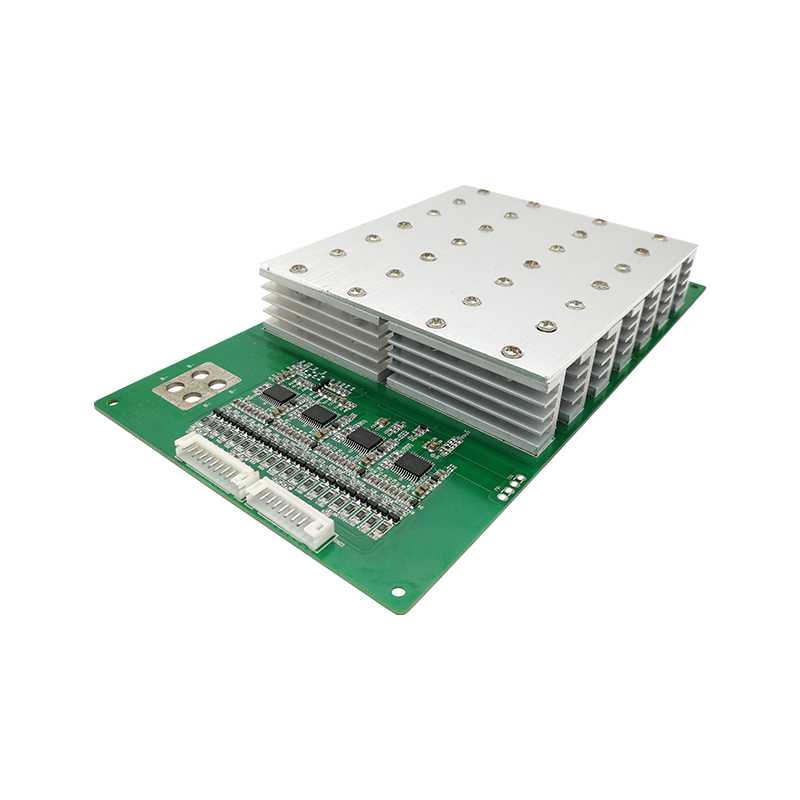

PCM-LB20S150A-AY065（20S 150A) PCM for 17S-35S - AYAA TECHNOLOGY CO., LTD

PCM for 17S-35S Model: PCM-LB20S150A-AY065（LI-20S 150A) ver: A Test item (Test at normal temperature 25±2℃) Criterion Voltage Charging voltage DC: 84V CC/CV（4.2v/Cell）20S Supply Current Normal operating mode Self consumption current ※ ≤ 50uA Maximal continuous charging current 20A Maximal continuous discharging current 150A Balance current for single cell ※ 42±10mA Over-charge Protection(single cell) Balance voltage for single cell ※ 4.2V±0.05V Over charge detection voltage ※ 4.25±0.05V Over charge detection delay time ※ 0.5S—2S Over charge release voltage 4.10±0.1V Over discharge protection(single cell) Over discharge detection voltage ※ 2.8±0.05V Over discharge detection delay time ※ 10—200mS Over discharge release voltage 3.0±0.1V Current protection(Battery pack) Discharge Over current detection current ※ 500±100A Detection delay time ※ 5ms—50ms Release condition Cut load, Auto Recovery Short protection Detection condition ☆ Exterior short circuit Detection delay time 200-600us Release condition Cut load Resistance Main loop electrify resistance ≤ 30mΩ Temperature high temperature discharge protection 65±3℃ Operating Temperature Range -40～+85℃ Storage Temperature Range -40～+125℃ SIZE: L200*W110*T19 mm NTC: / Temperature switch： 65 ℃ (the batteries temperature) Weak current switch：/ Activation Method:/ - AYAA TECHNOLOGY CO., LTD
