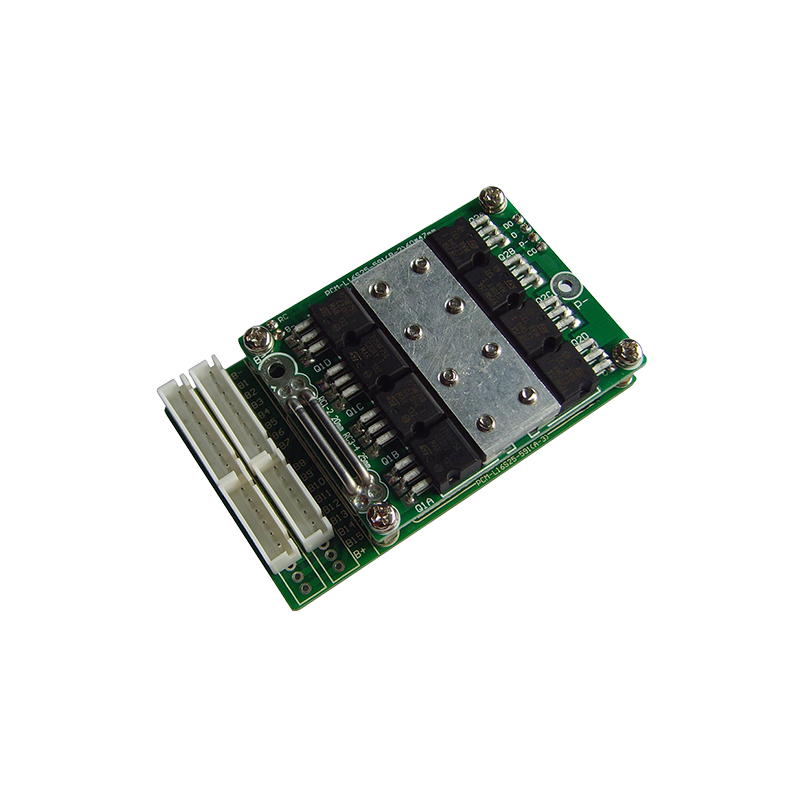

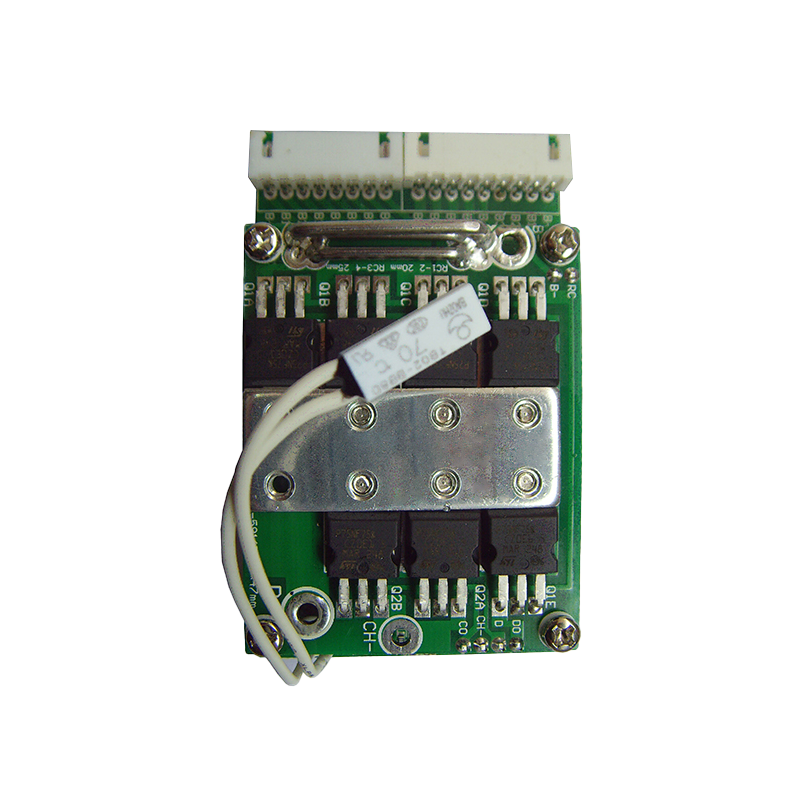

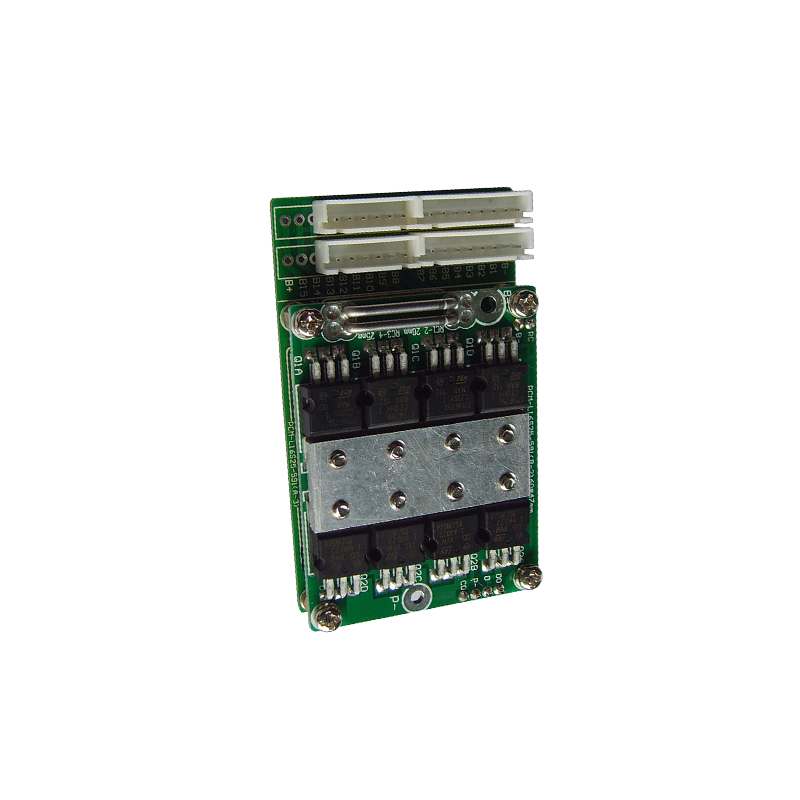

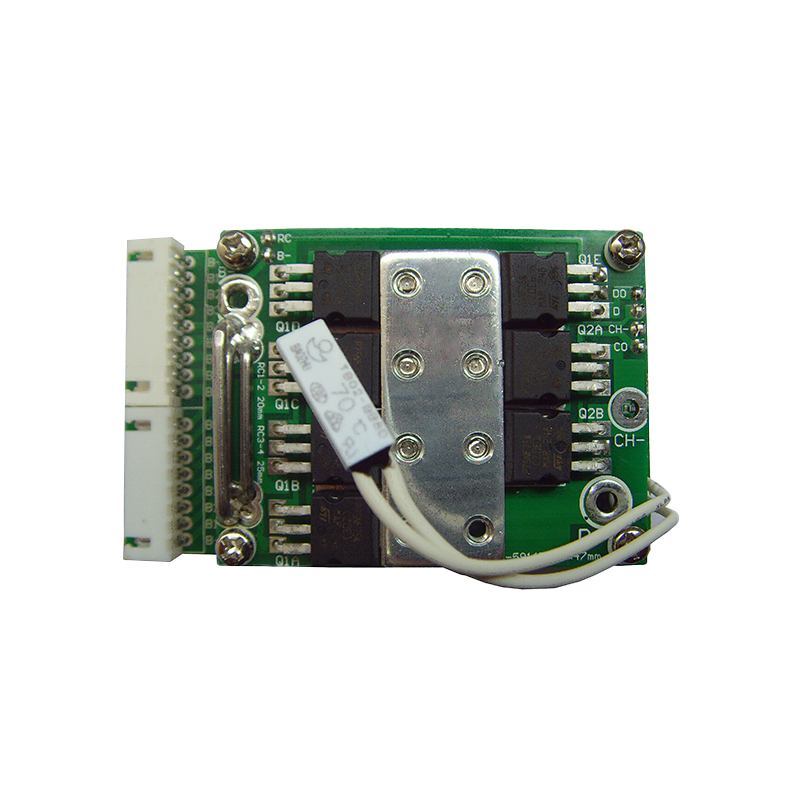

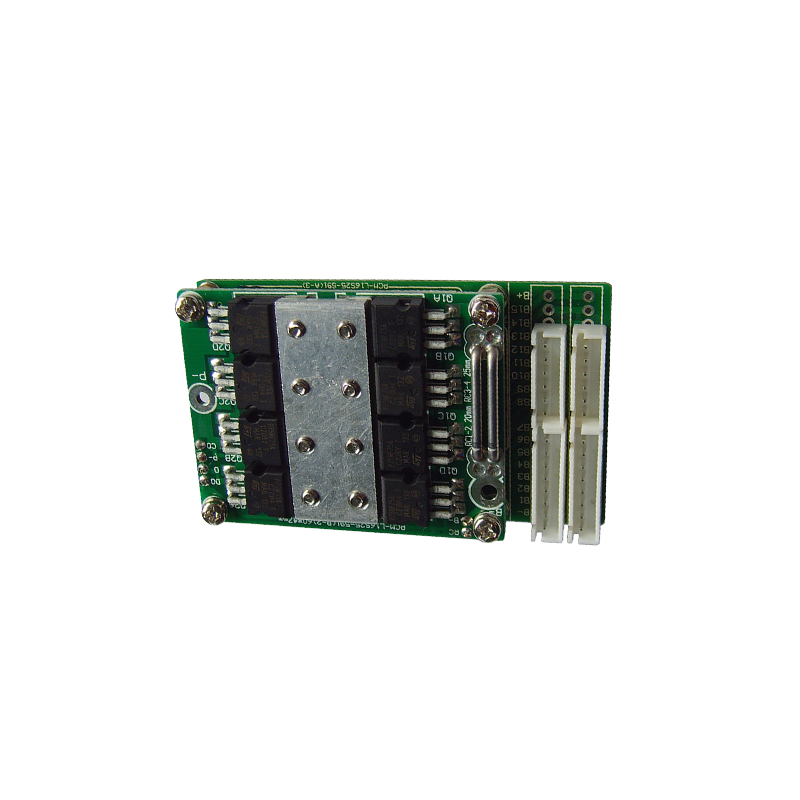

PCM-L16S25-591（16S 20A）PCM for 10S-16S - AYAA TECHNOLOGY CO., LTD

PCM for 10S-16S Model: PCM-L16S25-591（Li-16S20A） ver: A Test item（Test at normal temperature 25±2℃ ） Criterion Voltage Charging voltage DC：67.2V CC/CV（4.2V/Cell）16S Capacity Designing battery capacity（PCM） /mAh Supply Current Normal operating mode current：Fuel gauge in NORMAL mode. ILOAD >Sleep Current ≤50uA Maximal continuous charging current 20A Maximal continuous discharging current 20A Balance current for single cell 68±10mA Over-charge Protection （single cell） Balance voltage for single cell 4.2V±0.025V Over charge detection voltage 4.25±0.025V Over charge detection delay time 0.5S—2S Over charge release voltage 4.15±0.05V Over discharge protection（single cell） Over discharge detection voltage 2.50±0.07V Over discharge detection delay time 0.5S—2S Over discharge release voltage 3.0±0.1V Current protection（Battery pack） ChargeOver current detection current / Detection delay time / Discharge Over current detection current 80±10A Detection delay time 200-600us Release condition Cut load,Auto Recovery Short protection Detection condition Exterior short circuit Detection delay time 200-600us Release condition Cut load Resistance Main loop electrify resistance ≤20mΩ Temperature high temperature discharge protection 65℃ Operating Temperature Range -40～+85℃ Storage Temperature Range -40～+125℃ SIZE: L78*W55*T18mm NTC: / Temperature switch： / (the batteries temperature) Weak current switch：/ Activation Method:/ - AYAA TECHNOLOGY CO., LTD
