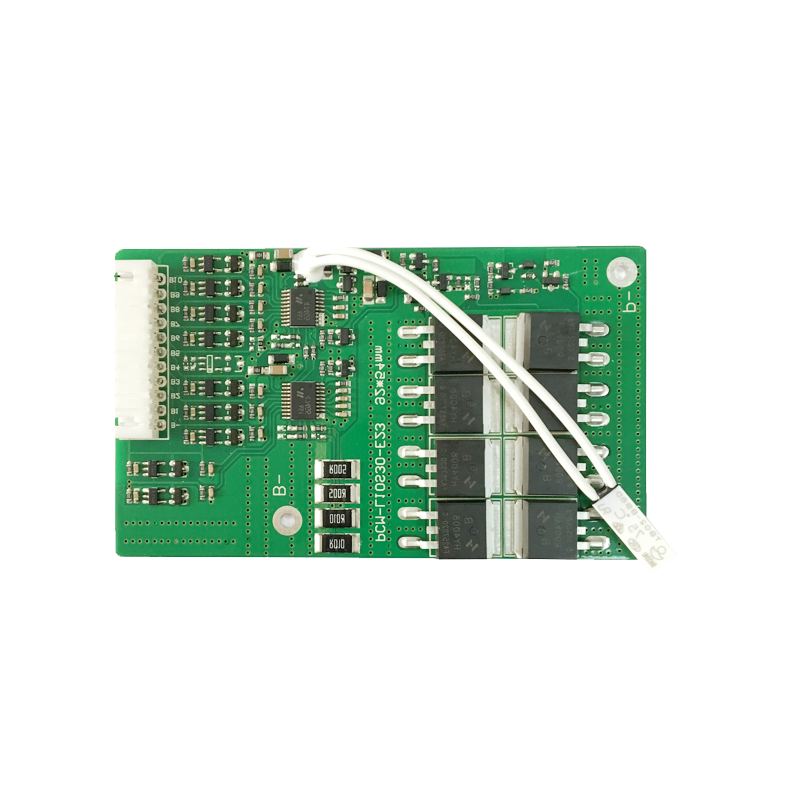

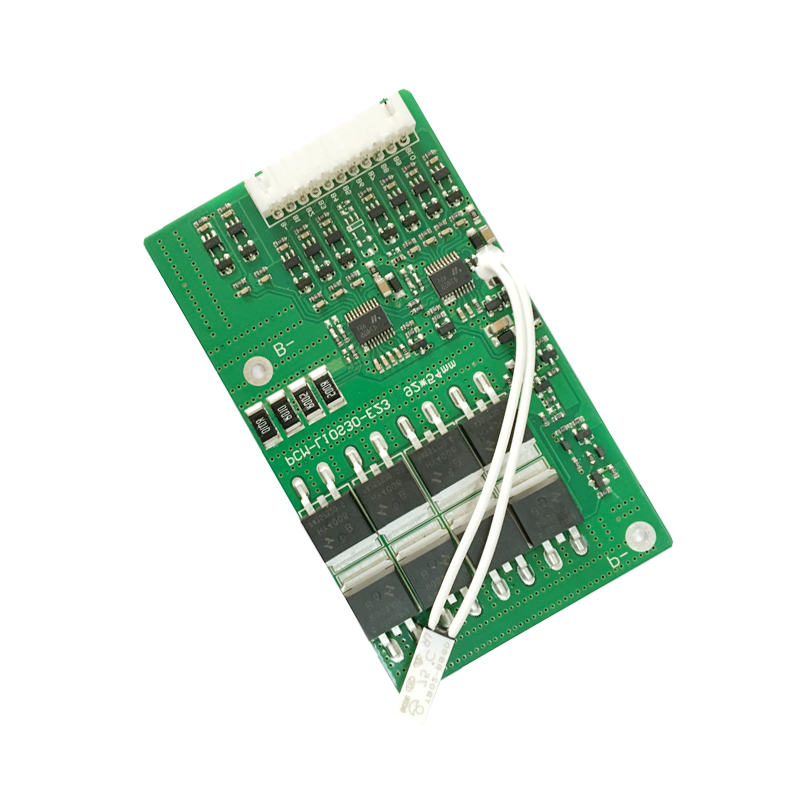

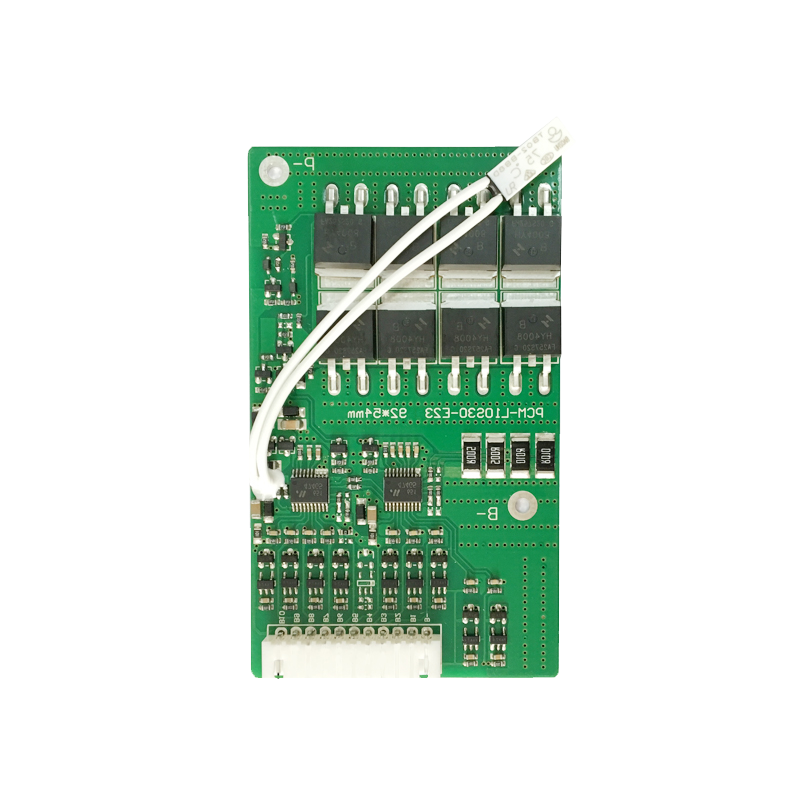

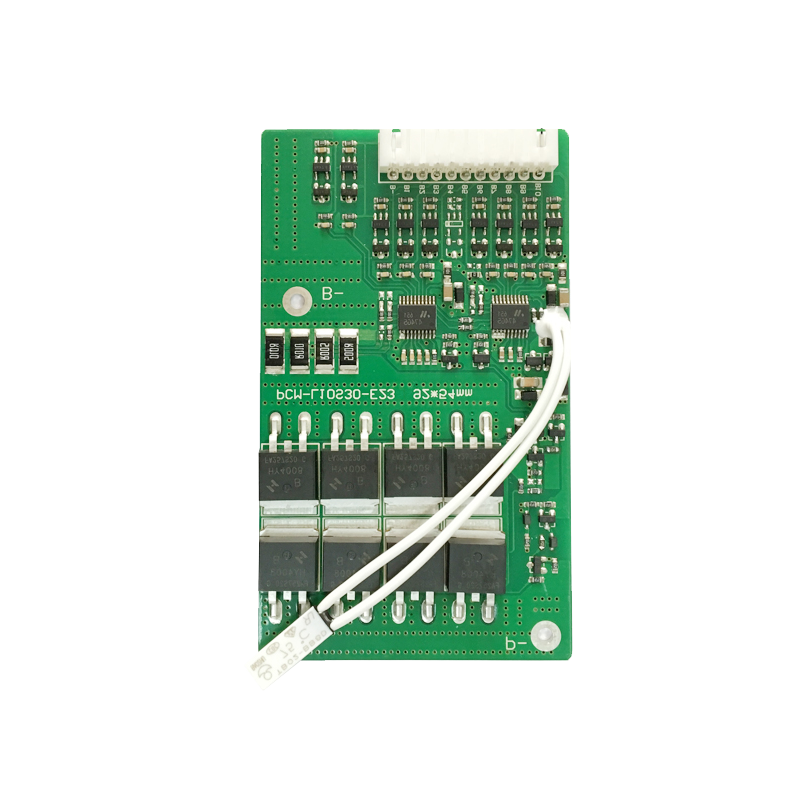

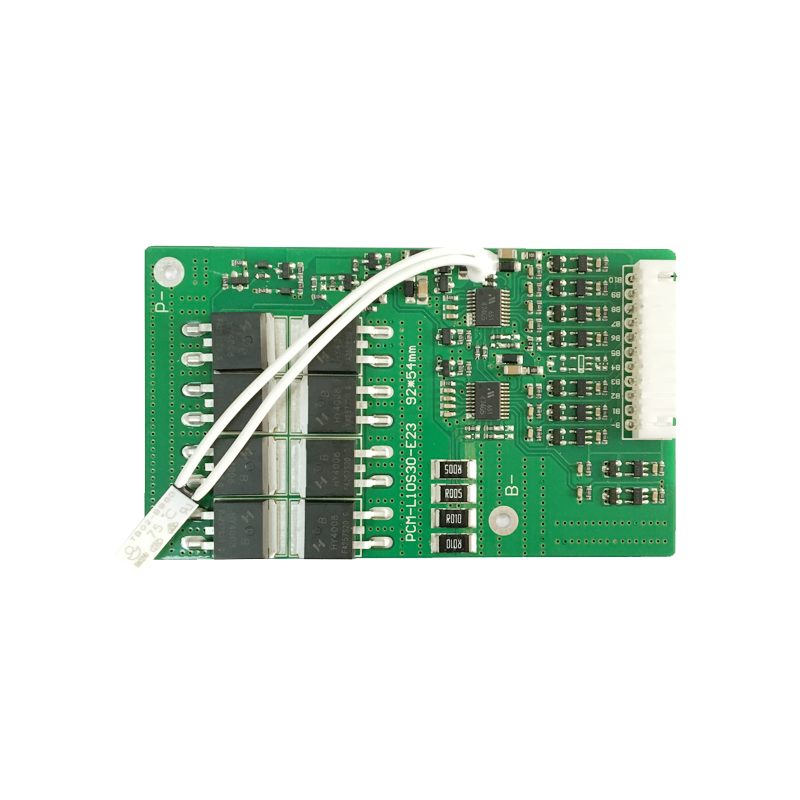

PCM for 10S-16S Protection Circuit Module Specifications For 37V Li-ion Battery Pack PCM-L10S20-E23（10S） No. Test item Criterion 1 Voltage Charging voltage DC: 42V CC/CV Balance voltage for single cell 4.20±0.05V 2 Current Balance current for single cell 68±10mA Current consumption ≤150μA Maximal continuous charging current 25A Maximal continuous Discharging current 25A 3 Over charge Protection Over charge detection voltage 4.25±0.05V Over charge detection delay time 0.5S—2S Over charge release voltage 4.15±0.1V 4 Over discharge protection Over discharge detection voltage 2.75±0.1V Over discharge detection delay time 150—400mS Over discharge release voltage 3.0±0.1V 5 Over current protection Over current detection current 55±10A Detection delay time 100ms—300ms Release condition charger release 6 Short protection Detection condition Exterior short circuit Detection delay time 200-500us Release condition Cut load 7 Resistance Protection circuitry（MOSFET） ≤20mΩ 8 Temperature Operating Temperature Range -40～+70℃ Storage Temperature Range -40～+125℃ - AYAA TECHNOLOGY CO., LTD
