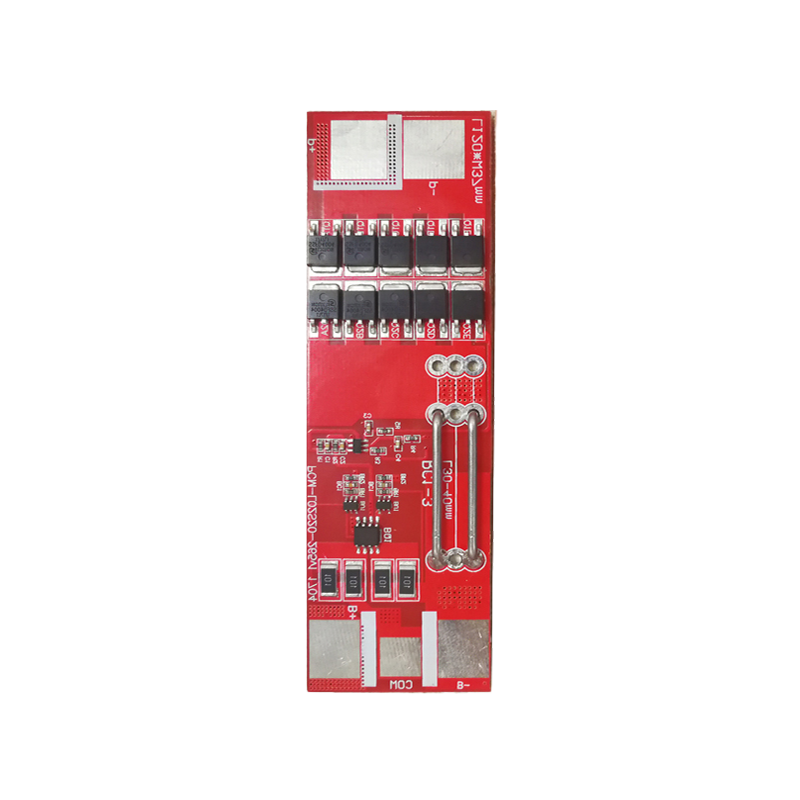

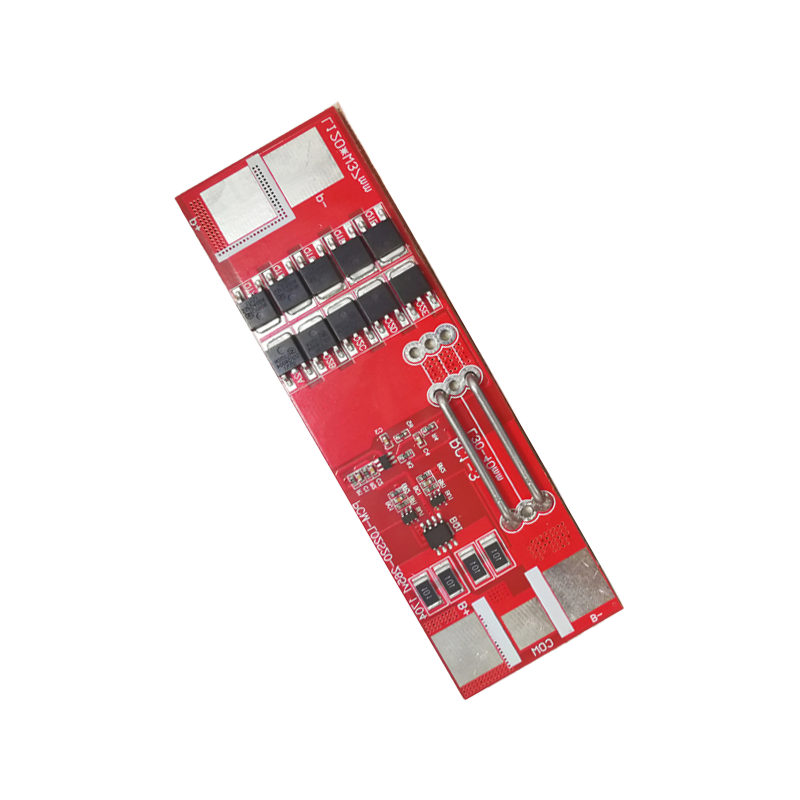

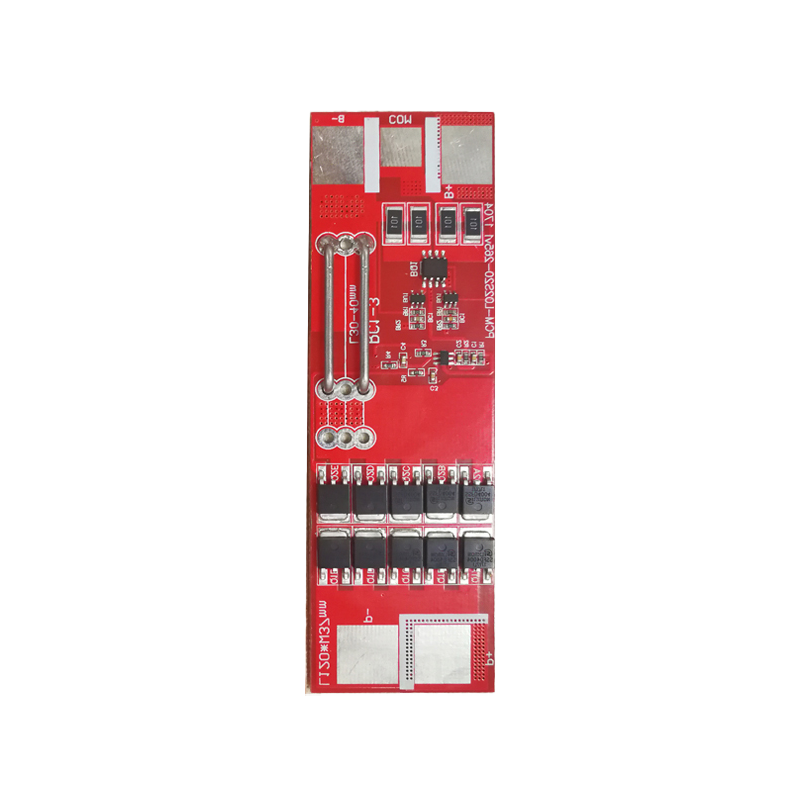

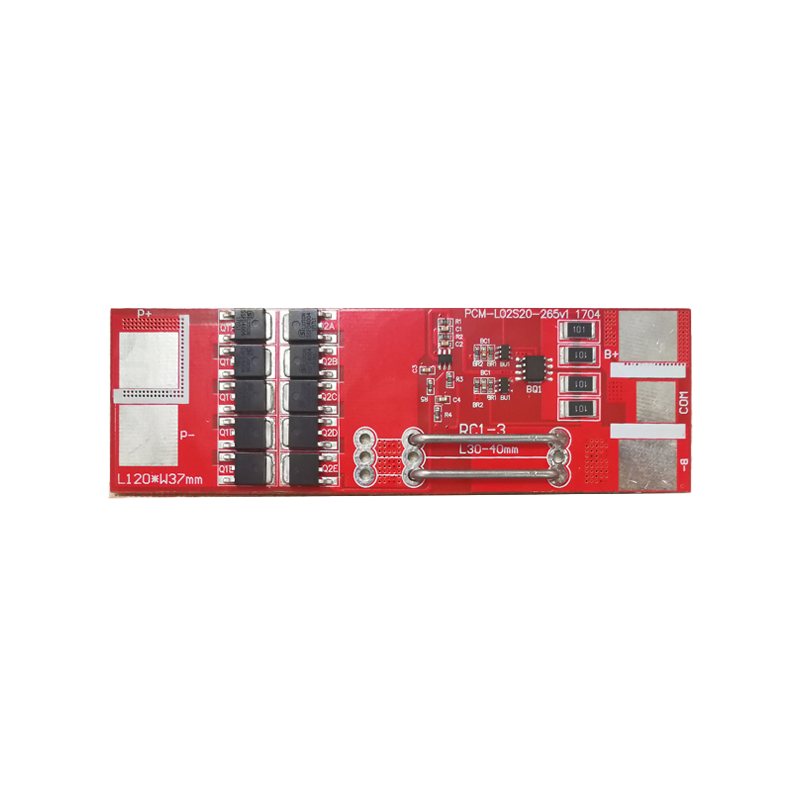

PCM-L02S20-265V1 Smart Bms Pcm for Li-ion/Li-po/LiFePO4 Battery PCM for 1S-2S - AYAA TECHNOLOGY CO., LTD

PCM for 1S-2S PCM-L02S20-265V1 (LI-2S20A) Model: PCM-L02S20-265V1 (LI-2S20A) Ver: A Test item（Test at normal temperature 25±2℃） Criterion Voltage Charging voltage DC：8.4V CC/CV（4.2V/Cell）2s Supply Current Normal operating mode current：Fuel gauge in NORMAL mode. ILOAD >Sleep Current ≤30uA Maximal continuous charging current 20A Maximal continuous discharging current 20A Balance current for single cell 42±10mA Over-charge Protection(single cell) Balance voltage for single cell 4.20±0.05V Over charge detection voltage 4.25±0.05V Over charge detection delay time 0.5S—2S Over charge release voltage 4.05±0.1V Over discharge protection(single cell) Over discharge detection voltage 2.8±0.05V Over discharge detection delay time 10—200mS Over discharge release voltage 3.0±0.1V Current protection(Battery pack) Discharge Over current detection current 50±10A Detection delay time 5ms—20ms Release condition Cut load, Auto Recovery Short protection Detection condition Exterior short circuit Detection delay time 200-600us Release condition Cut load Resistance Main loop electrify resistance ≤60mΩ Temperature Operating Temperature Range -40～+85℃ Storage Temperature Range -40～+125℃ SIZE: L120*W37*T4 mm NTC: / Temperature switch：/ Weak current switch：/ special requirement: / - AYAA TECHNOLOGY CO., LTD
