PCM-G01S05-932 (1S 5A) Smart Battery Managment with Fuel Guage - AYAA TECHNOLOGY CO., LTD

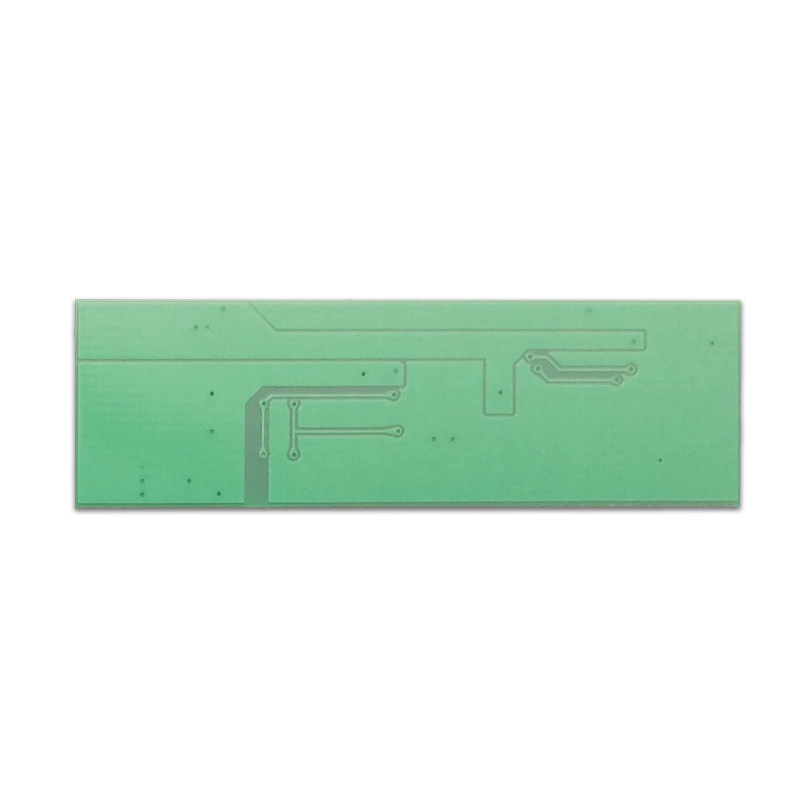

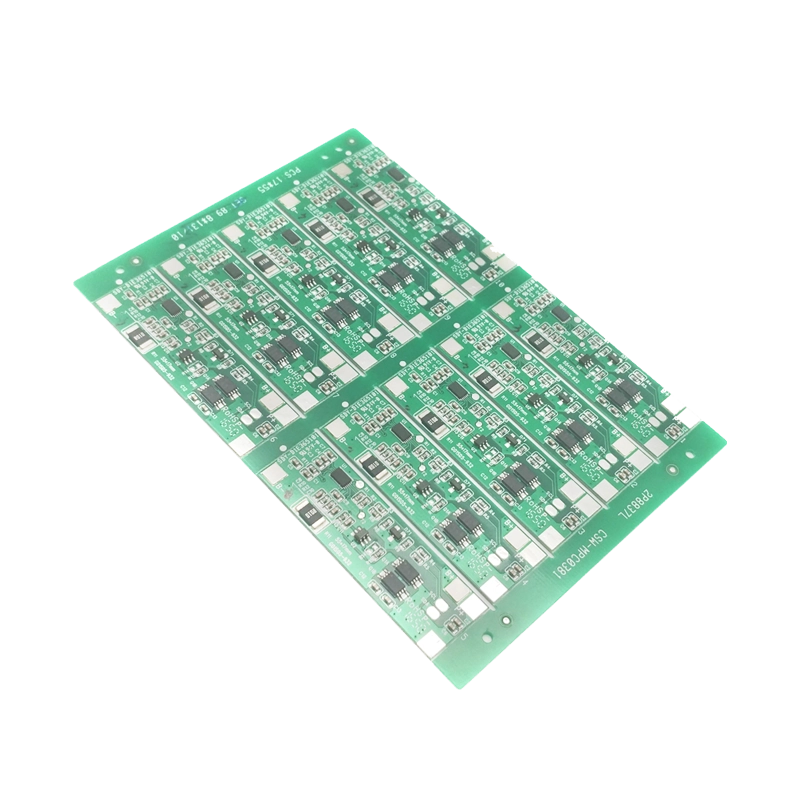

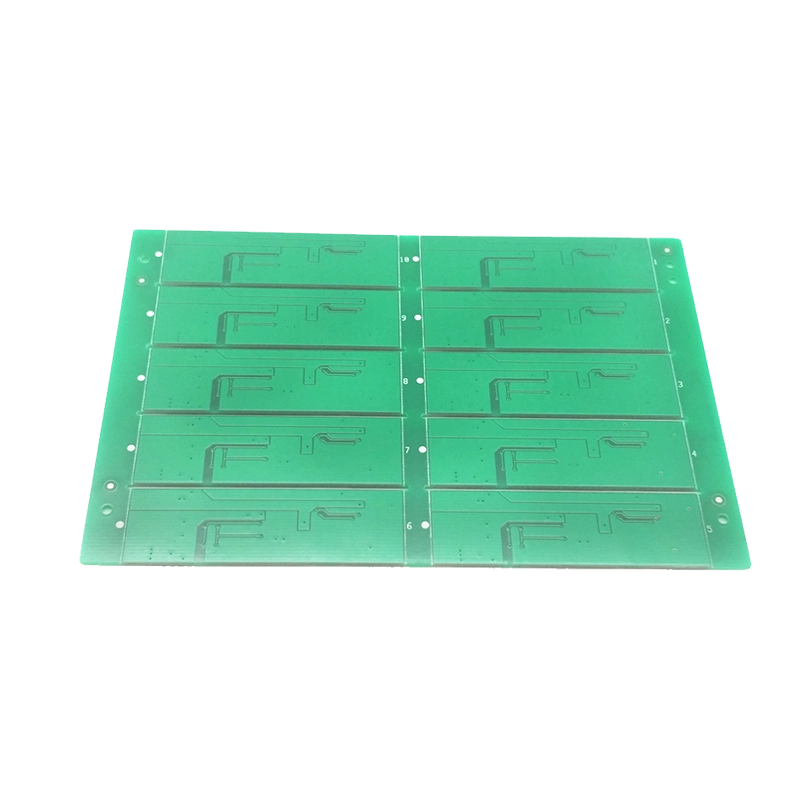

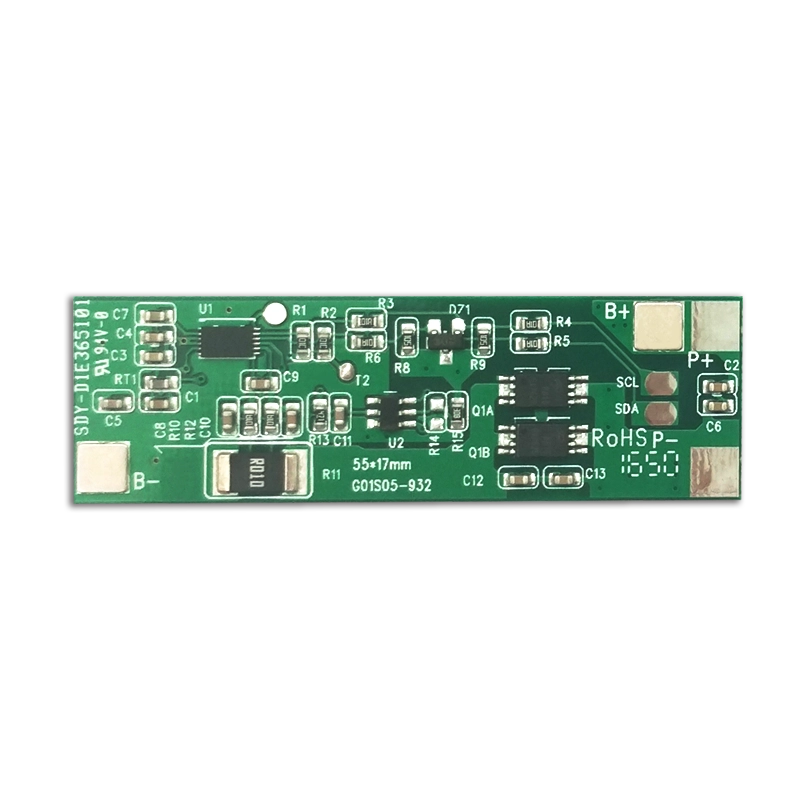

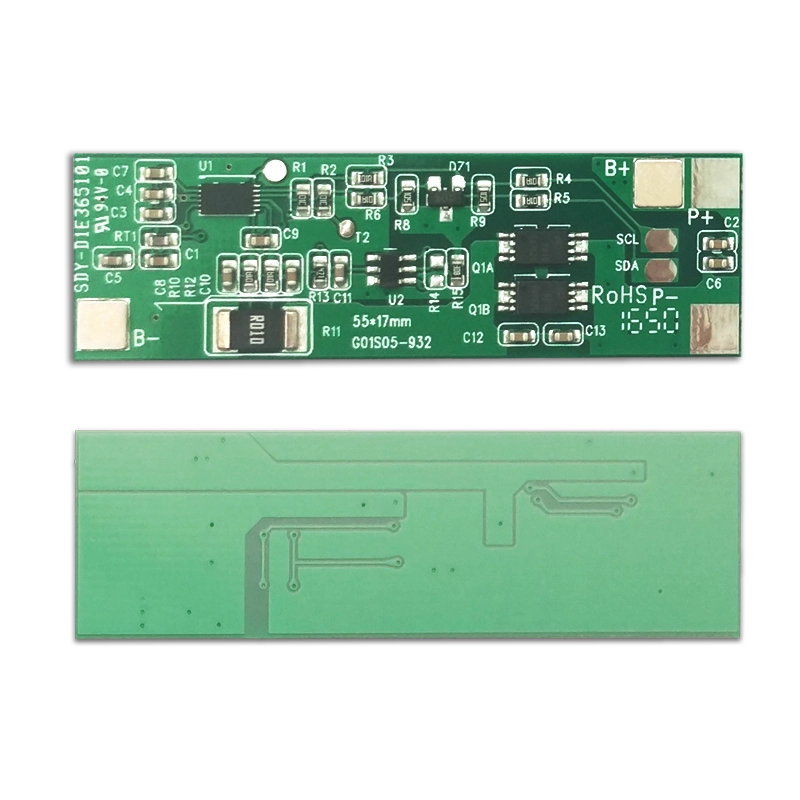

Smart Battery Managment with Fuel Guage PCM-G01S05-932 1S No Test item Criterion 1 Communication Interface I2C 2 Capacity Designing battery capacity （PCM） *mAh Max capacity（Battery pack） *mAh Min capacity（Battery pack） 8mAh External capacity Indication / Gas gauge algorithm Impedance Track 3 Voltage Charging voltage DC: 4.2V CC/CV（4.2V/1cell） Balance voltage for single cell / 4 Current Balance current for single cell / Normal operating-mode current：Gas Gauge in NORMAL mode,ILOAD > Sleep Current 140 uA SLEEP operating-mode current：Gas Gauge in SLEEP mode,ILOAD < Sleep Current 70 uA FULL SLEEP operating-mode current：Gas Gauge in FULL SLEEP mode,ILOAD < Sleep Current 25 uA Maximal continuous charging current 5A Maximal continuous discharging current 5A 5 Over charge Protection Over charge detection voltage 4.25±0.025V Over charge detection delay time 0.5S—2S Over charge release voltage 4.15±0.05V 6 Over discharge protection Over discharge detection voltage 2.5±0.08V Over discharge detection delay time 10—1000mS Over discharge release voltage 3.0±0.1V 7 Over current protection Over current detection voltage 0.2±0.015V Over current detection current 12±5A Detection delay time 5ms—60ms Release condition Cut load 8 Short protection Detection condition Exterior short circuit Detection delay time 200us-10ms Release condition Cut load 9 Resistance Protection circuitry ≤50mΩ 10 Temperature Operating Temperature Range -40～+85℃ Storage Temperature ... - AYAA TECHNOLOGY CO., LTD
