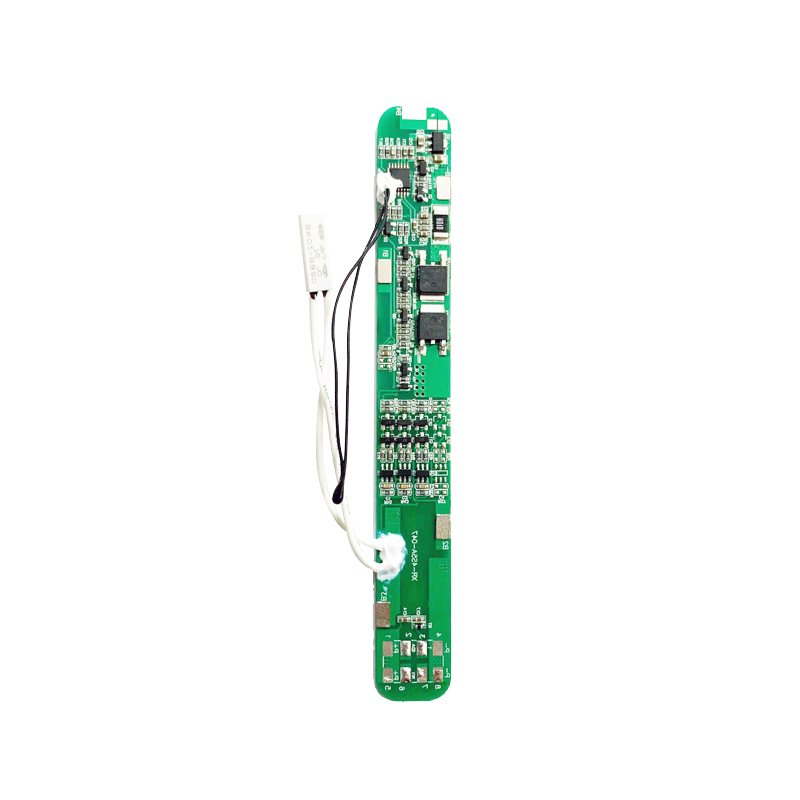

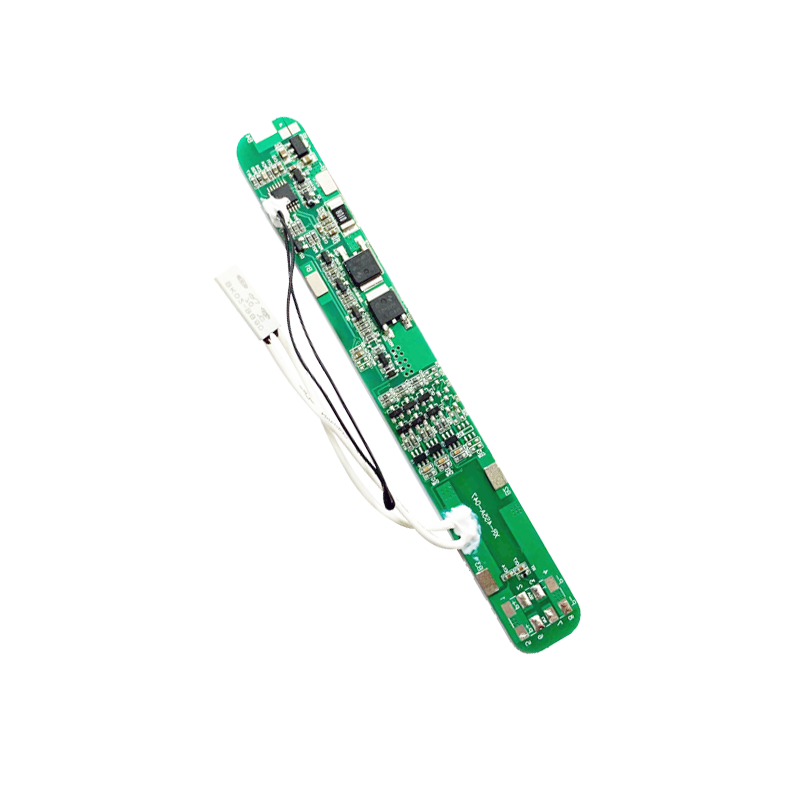

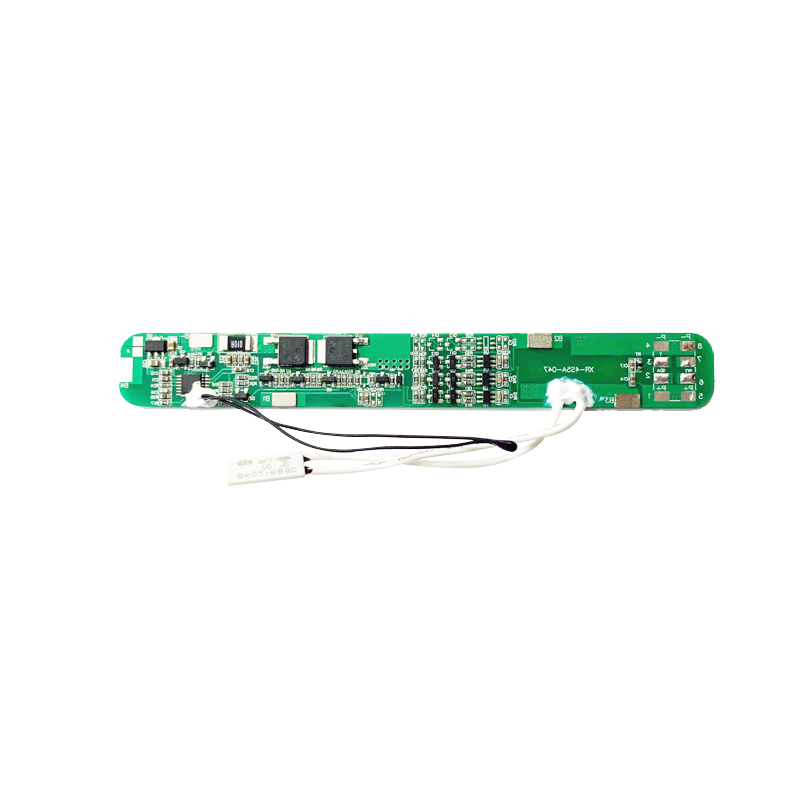

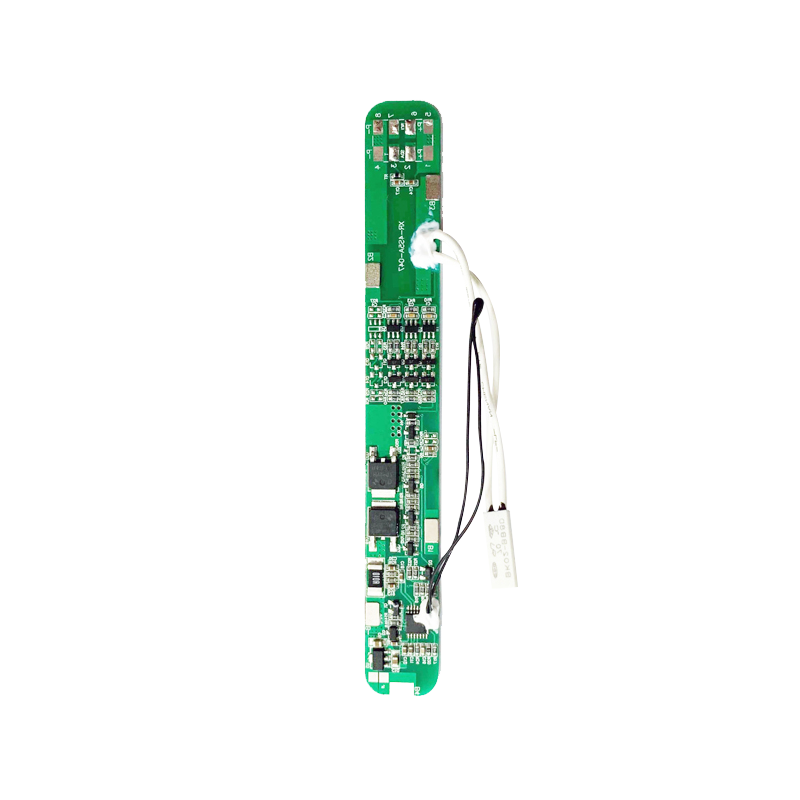

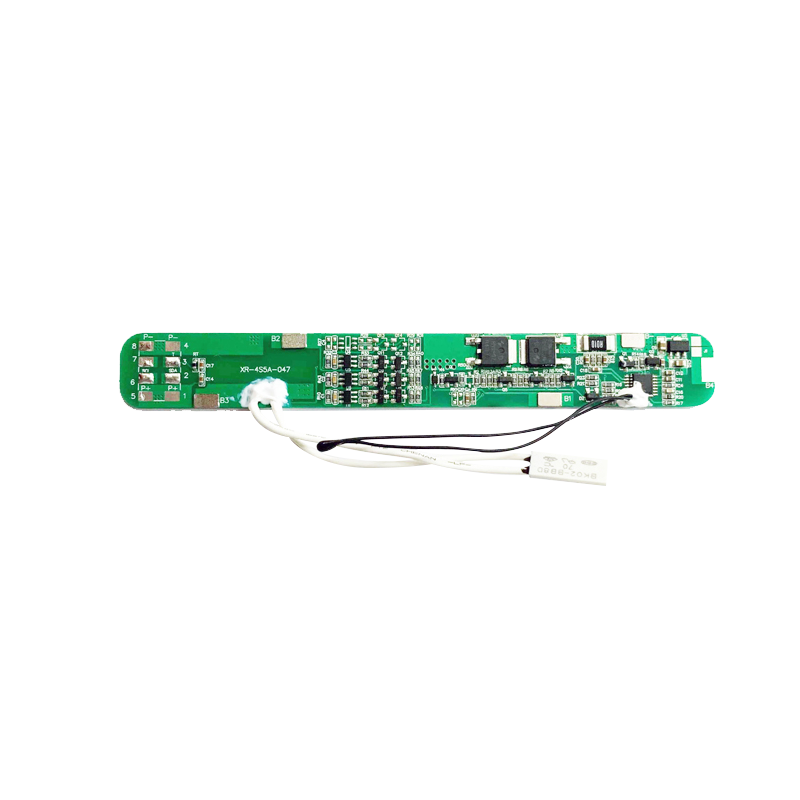

AY-LX3S1.5A-T002 (3S 1.5A) BMS/PCM with Communications - AYAA TECHNOLOGY CO., LTD

BMS/PCM with Communications Model: AY-LX3S1.5A-T002-LB3S1.5A Ver: A Test item (Test at normal temperature 25±2℃) Criterion Communication Interface I2C Voltage Charging voltage DC：12.6V CC/CV（4.2V/Cell）3S Supply Current Normal operating mode Self consumption current ※ ≤ 30uA Maximal continuous charging current 2A Maximal continuous discharging current 2A Over-charge Protection(single cell) Over charge detection voltage ※ 4.25±0.05V Over charge detection delay time ※ 0.5S—2S Over charge release voltage 4.05±0.1V Over discharge protection(single cell) Over discharge detection voltage ※ 2.8±0.05V Over discharge detection delay time ※ 10—200mS Over discharge release voltage 3.0±0.1V Current protection(Battery pack) Discharge Over current detection current ※ 15±3A Detection delay time ※ 5ms—50ms Release condition Cut load, Auto Recovery Short protection Detection condition ☆ Exterior short circuit Detection delay time 200-600us Release condition Cut load Resistance Main loop electrify resistance ≤ 30mΩ Temperature High temperature discharge protection 70±3℃ Operating Temperature Range -40～+85℃ Storage Temperature Range -40～+125℃ SIZE: L127.5*W16*T4 mm NTC: / Temperature switch： 70 ℃ (the batteries temperature) Weak current switch：/ Activation Method:/ - AYAA TECHNOLOGY CO., LTD
