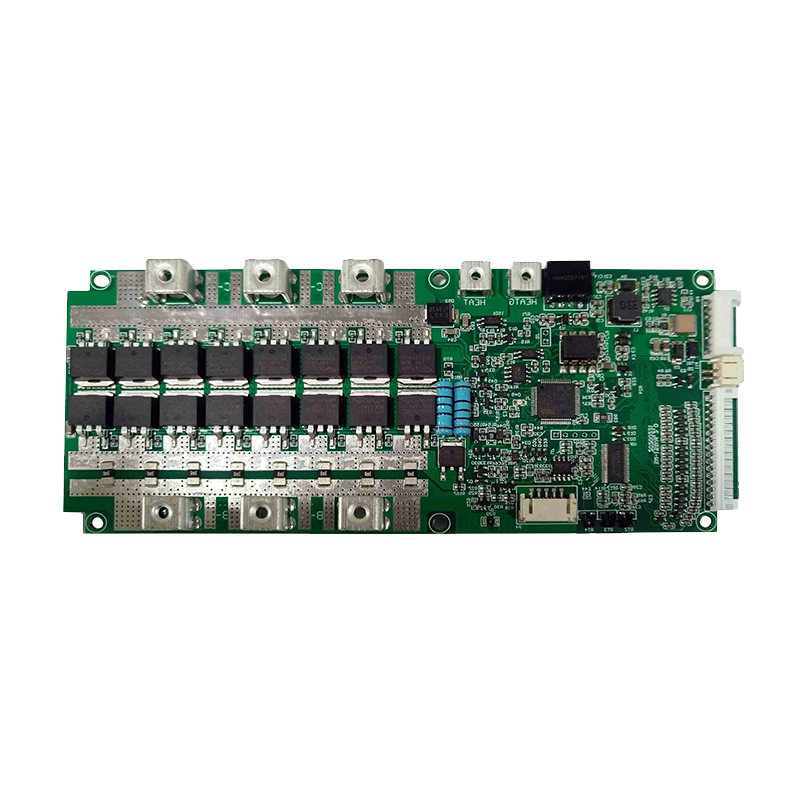

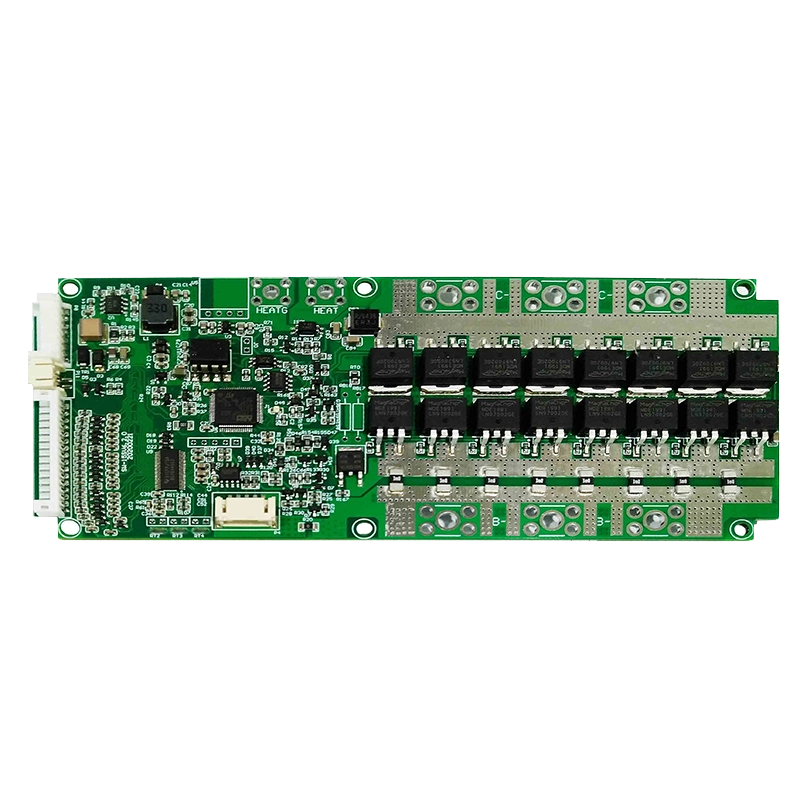

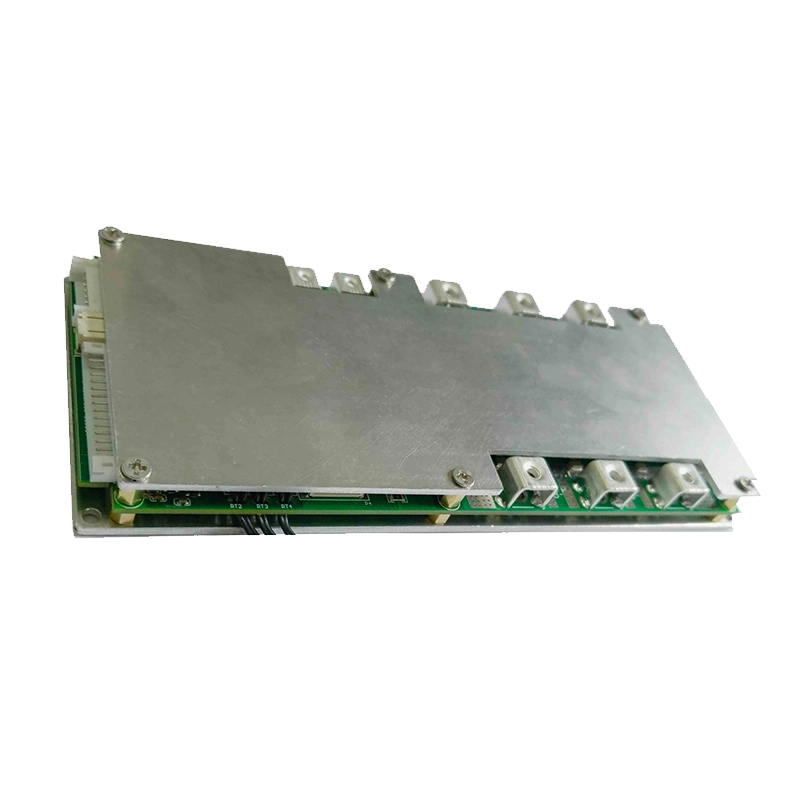

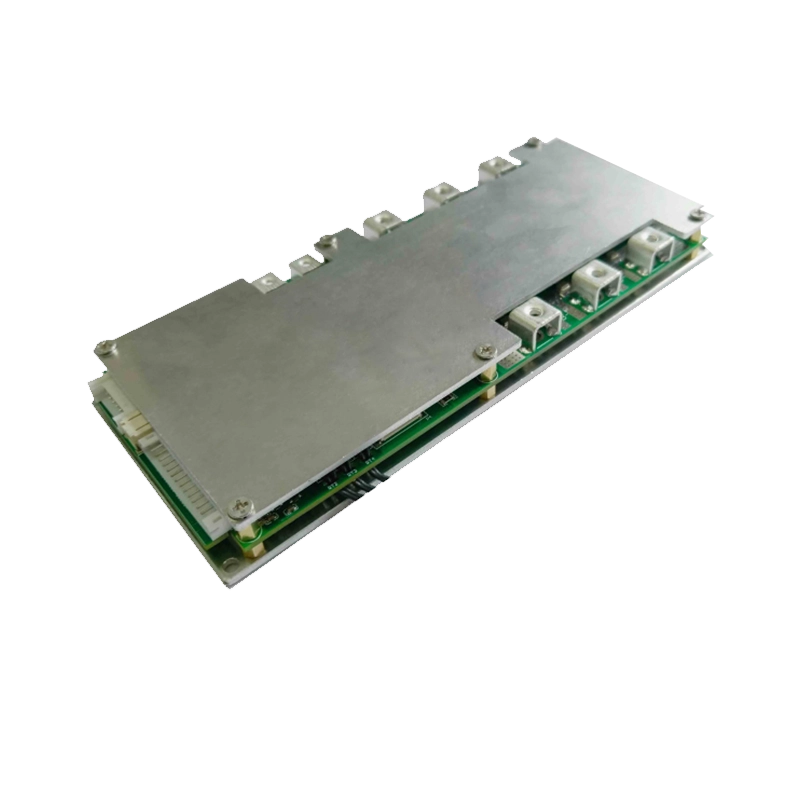

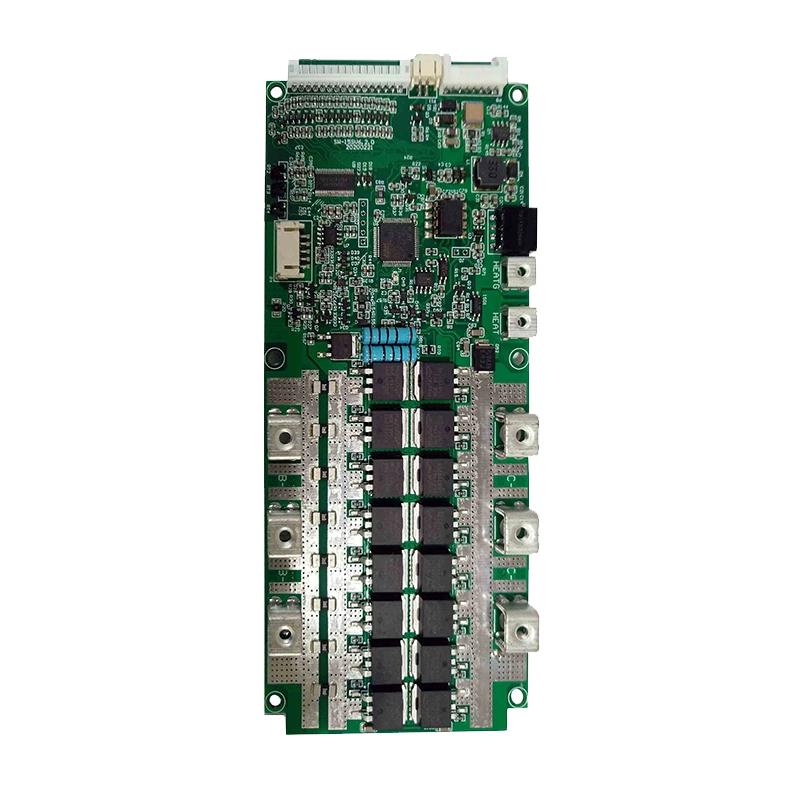

BMS/PCM with Communications Model：AY-L5S100A-M069 No. Test item （Testatnormal temperature 25±2℃ and relative humidity≤90%） Criterion 1 Communication Interface RS485&CANBUS&UART 2 Voltage Charging voltage DC：17.25V~21V CC/CV（3.45V~4.2V/Cell）5s 3 Supply Current Normal operating-mode current （Gas Gauge IC） ≤25mA（average） SLEEP operating-mode current （Gas Gauge IC） ≤150uA（average） Maximal continuous charging current 30-100A Maximal continuous discharging current 30-100A Balance current for single cell 36-42mA 4 Over charge Protection （single cell） Balance voltage for single cell 3.6-4.2V Over charge detection voltage 3.6-4.35V Over charge detection delay time 0.5S—2S Over charge release voltage 3.4-4.15V 5 Over discharge protection （single cell） Over discharge detection voltage 2.0-3.0V Over discharge detection delay time 150—300mS Over discharge release voltage 2.3-3.2V 6 Over current protection（Battery pack） Over charge current protection 40-120A Detection delay time 1S Over current detection current 1 80-240A Detection delay time 2-5S Over current detection current 2 90-300A Detection delay time 50ms—300ms Release condition Cut load,Auto Recovery 7 Short protection Detection condition Exterior short circuit Detection delay time 200-800us Release condition Cut load,Auto Recovery 8 Resistance Protection circuitry （MOSFET） ≤50mΩ 9 Temperature Operating Temperature Range -40～+85℃ Storage Temperature Range -40～+125℃ SIZE: L180 *W75 *T20 mm NTC: 10K NTC*2pcs Temperature switch：/ Weak current switch：YES Activation Method: / - AYAA TECHNOLOGY CO., LTD
