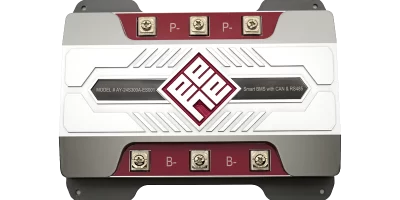

LF LI Model Number AY-L24S300A-ES001 (7S-24S) Communication Interface RS485/CAN/UART Charging voltage DC：22.4V~76.8VCC/CV（3.2V/Cell)7s~24s DC：29.4V~84VCC/CV（4.2V/Cell)7s~20s Maximal continuous charging current 300A Maximal continuous discharging current 300A Current consume in normal operation ≤15mA Current consume in sleep operation ≤150uA Balance voltage for single cell 3.5±0.05V 4.0±0.05V Over charge detection voltage 3.65±0.05V 4.25±0.05V Charge Over current detection current 320±3A Discharge Over current detection current 1 600±3A Discharge Over current detection current 2 800±3A Short Protection YES SOC 5%~8% Technical Specification Size L206 * W162 * T40 mm NTC 10K Temperature switch / ℃(the batteries temperature) Weak current switch YES Active balance YES Heater YES Braking Resistors YES Other Parameter Low temperature protection when charge 0℃ Release temperature( low temperature protection) 5℃ Over temperature protection when charge 60℃ Release temperature( over temperature protection) 55℃ Low temperature protection when discharge 15℃ Release temperature( low temperature protection) 10℃ Over temperature protection when discharge 65℃ Release temperature( over temperature protection) 55℃ Operating Temperature Range 40~+85℃ Storage Temperature Range 40~+125℃ Temperature Parameter LCD display screen YES LED light board TES Bluetooth mode YES 4G YES GPS YES Optional Configuration
